Miracle
Contemporary Titanium Gravel Freedom
Configure Miracle >>

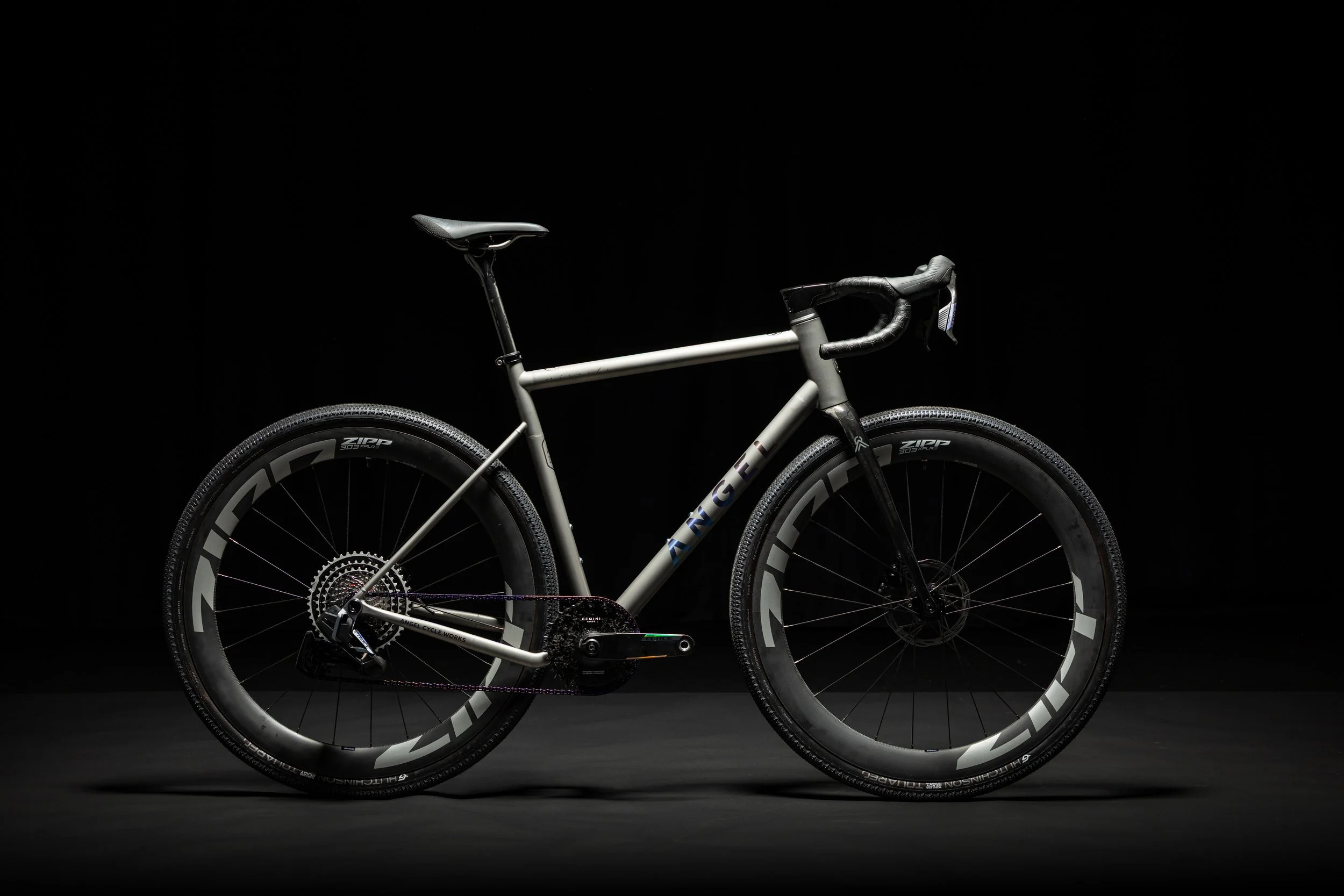

The Miracle is our interpretation of contemporary titanium gravel freedom.
Built around signature 3D printed titanium lugs manufactured in Spain and paired with lightweight aerospace-grade butted tubing, it delivers a uniquely confident ride feel — stable when the terrain becomes unpredictable, responsive when the road opens ahead.
Designed for gravel exploration, multi-surface adventures and long days beyond the tarmac, Miracle combines capability, refinement and the unmistakable ride quality only titanium can offer.
Clearance for up to 50mm tires.
Built Around Freedom
Built Around Freedom
Miracle combines advanced titanium manufacturing with a deeply refined gravel experience.
The 3D printed lug construction allows precise tuning of comfort, stability and ride response while maintaining the unmistakable smoothness and durability titanium is known for.
Designed for riders seeking exploration, confidence and all-day capability across changing terrain without compromise.
Technical Overview
Technical Overview
3D printed titanium lugs manufactured in Spain.
3/2.5 aerospace-grade butted titanium tubing.

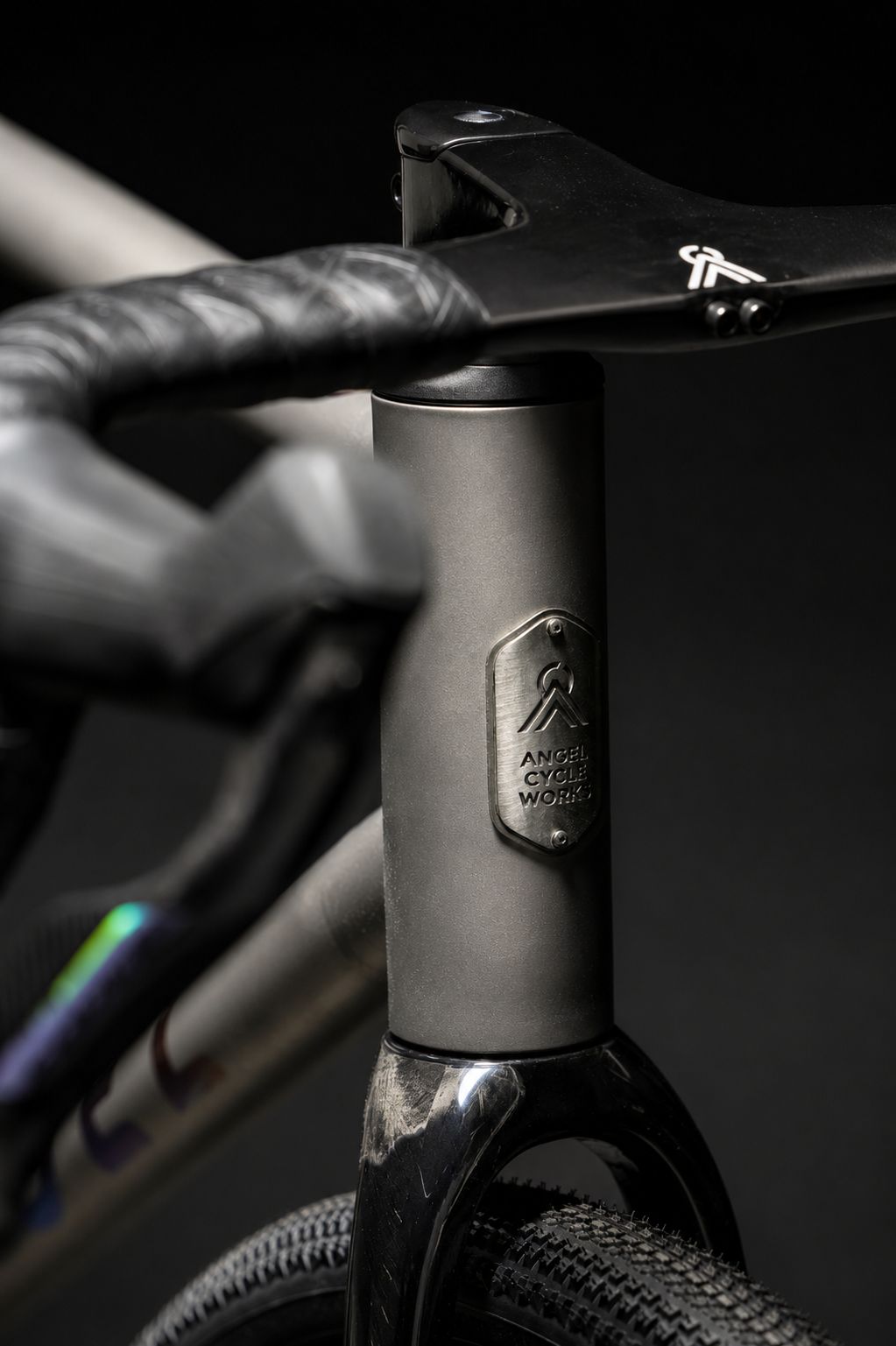

IS52 headtube with full internal cable routing.
BB386 PF46 bottom bracket platform.
Electronic and mechanical drivetrain compatible (1x / 2x).

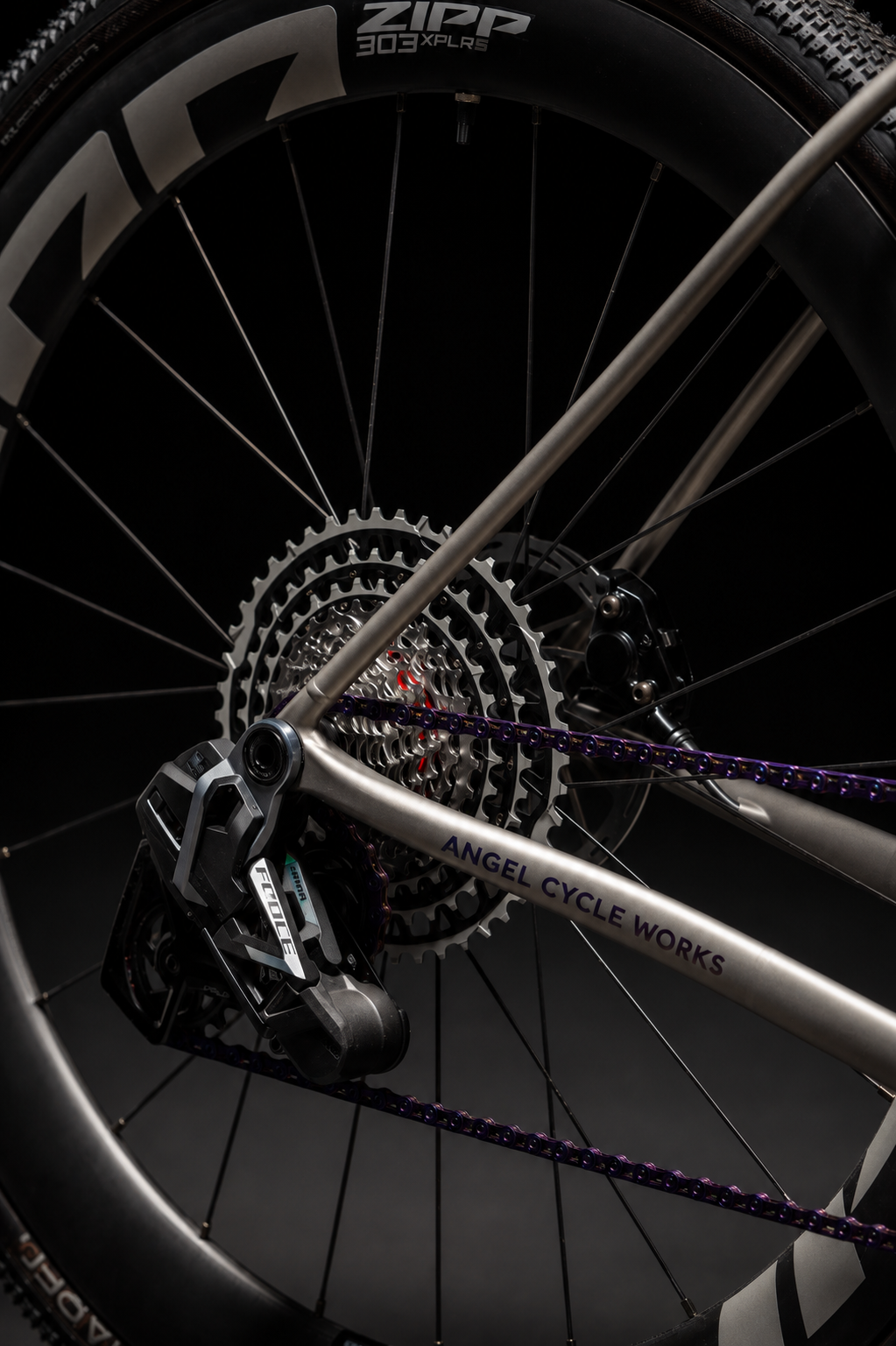

UDH dropout system.
Flat mount disc platform.
700x50c tire clearance.
Frame weight from 1450g depending on size.
Available in:
49 / 52 / 54 / 56 / Custom Geometry
Miracle
Contemporary Titanium Gravel Freedom
Frameset from €5,650
Complete builds from €8,125
Worldwide delivery available.
Each Heaven begins with a conversation.
| Geometry | 52 | 54 | 56 | 58 |
|---|---|---|---|---|
| Reach | 376 mm | 390 mm | 397 mm | 402 mm |
| Stack | 533 mm | 552 mm | 574 mm | 602 mm |
| Top Tube Length | 529 mm | 549 mm | 562 mm | 570 mm |
| Wheelbase | 1010 mm | 1026 mm | 1030 mm | 1039 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| BB Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Seat Tube Angle | 73.5° | 73.5° | 73.5° | 74.0° |
| Head Tube Angle | 70.5° | 71.0° | 72.0° | 72.5° |
| Seat Tube Length | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Length | 109 mm | 127 mm | 147 mm | 174 mm |
| Fork Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| AC Fork Length | 395 mm | 395 mm | 395 mm | 395 mm |
