Built Around Simplicity
Element distills everything we believe a titanium gravel bike should be.
Honest, capable and refined. Built around the same philosophy of durability, ride quality and timeless design that defines every Angel Cycle Works bicycle.
Designed to deliver the essence of titanium gravel riding in its purest form.
Built Around Versatility
The new gateway into the world of ANGEL.
A bicycle designed for riders seeking a versatile and dependable machine capable of handling every side of gravel riding.
It’s not a race gravel bike. It’s not a bikepacking gravel bike. It’s not an ultra-endurance gravel bike.
Yet it is perfectly capable of taking on any of those roles.
Featuring generous tyre clearance of up to 700×55 mm, and a geometry carefully developed for the needs of 90% of riders.
Its fit philosophy follows what bike fitters increasingly recommend today: a well-balanced stack combined with a moderate reach, delivering comfort, control and confidence across a wide range of terrain and riding styles.
Technical Overview

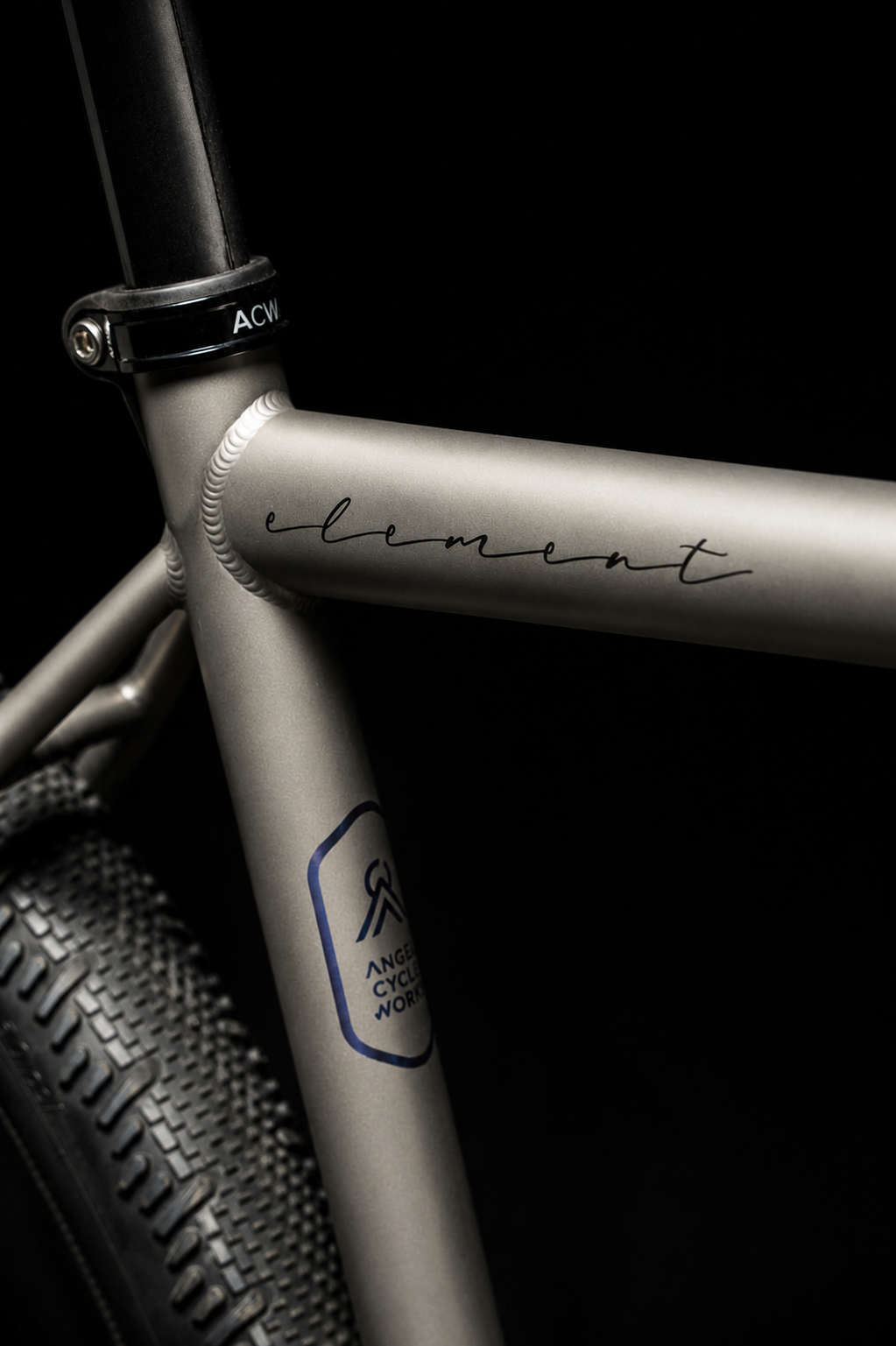

Titanium 3/2.5 Ti aerospace tubes and 6/4 Ti BB, dropouts and HT.

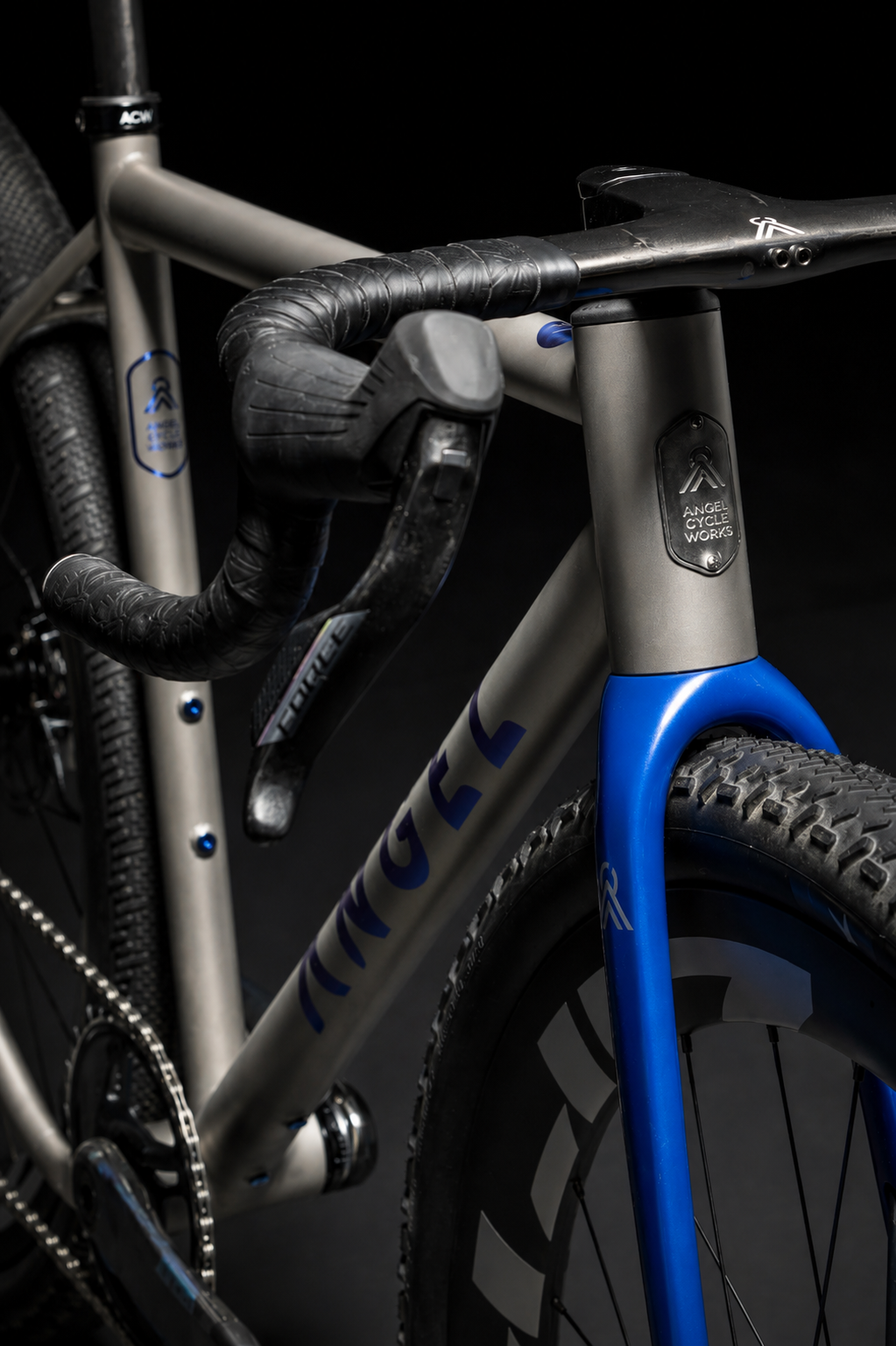

• IS52 headtube for fully internal cable routing.
• Oversized T47x86 Bottom Bracket.
• 31.8mm Seat Tube for 27.2mm seatpost and 31.8mm standard seat clamp and derailleur clamp.
• UDH dropout.
• Ready for electronic and mechanical drive systems (1x and 2x).
• Flatmount disc mount. Front 150/180 / Rear 140/160
• 700×55c tyre clearance.
• Finish: Base Matt (shot peening), anodized or bright logos and paint (anodized style match) or raw carbon fork.
Frame weight from 1,700–1,850 g depending on size.
Other components: Fork (380gr), Headset (78gr), Handlebar (380gr), Seatpost (135gr)
Element Finishes

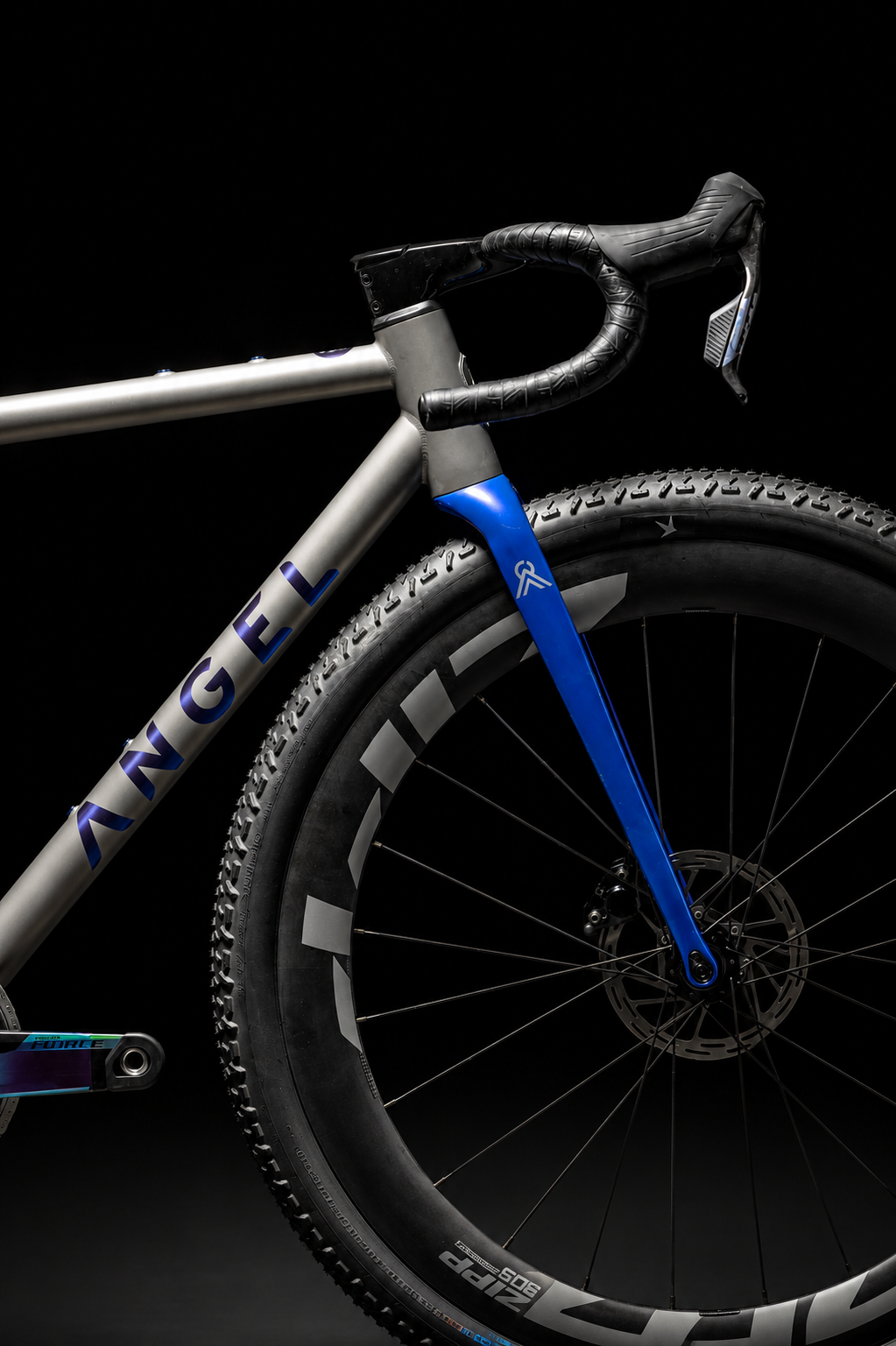

Blue OTC

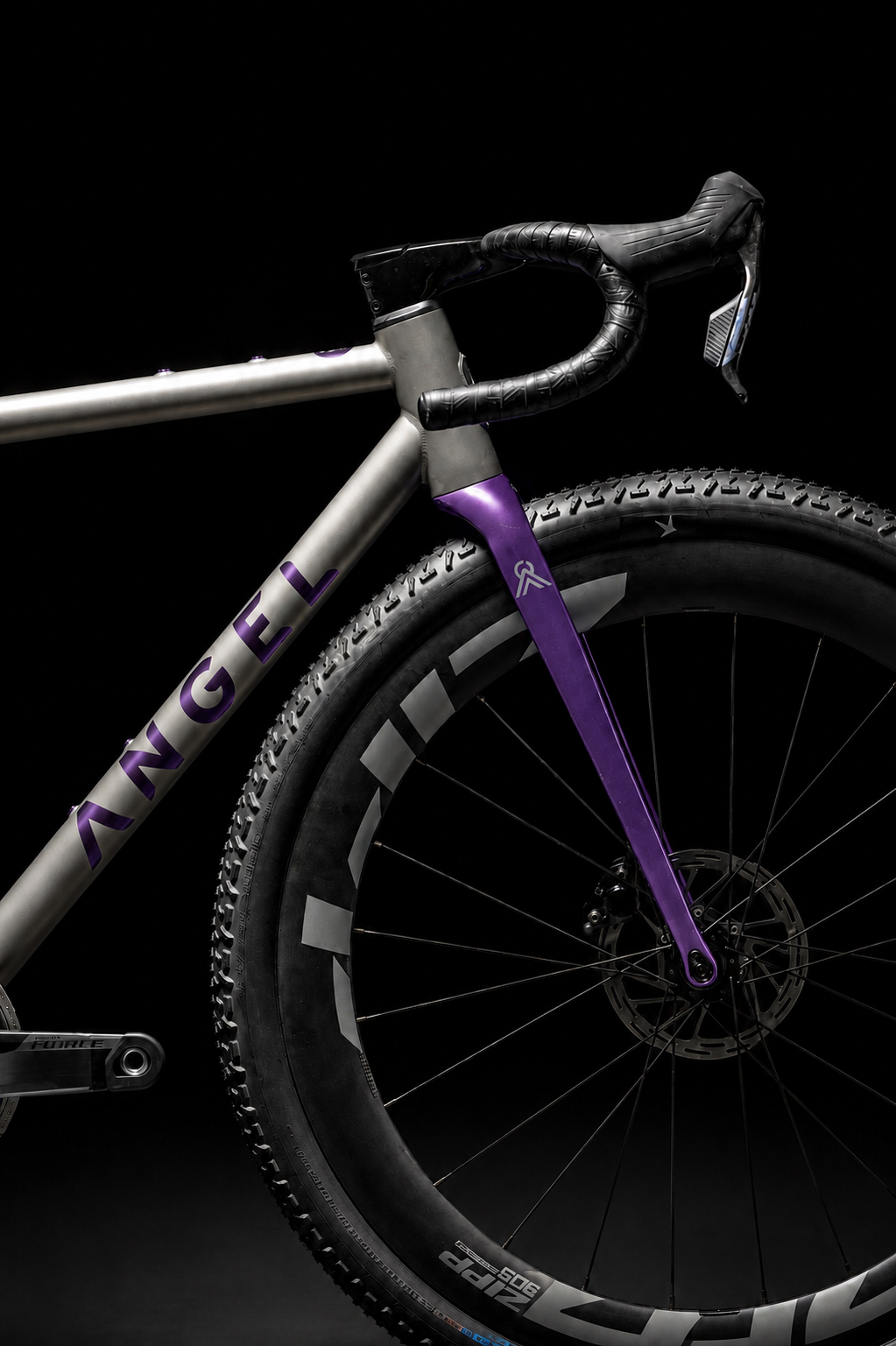

Purple OTC

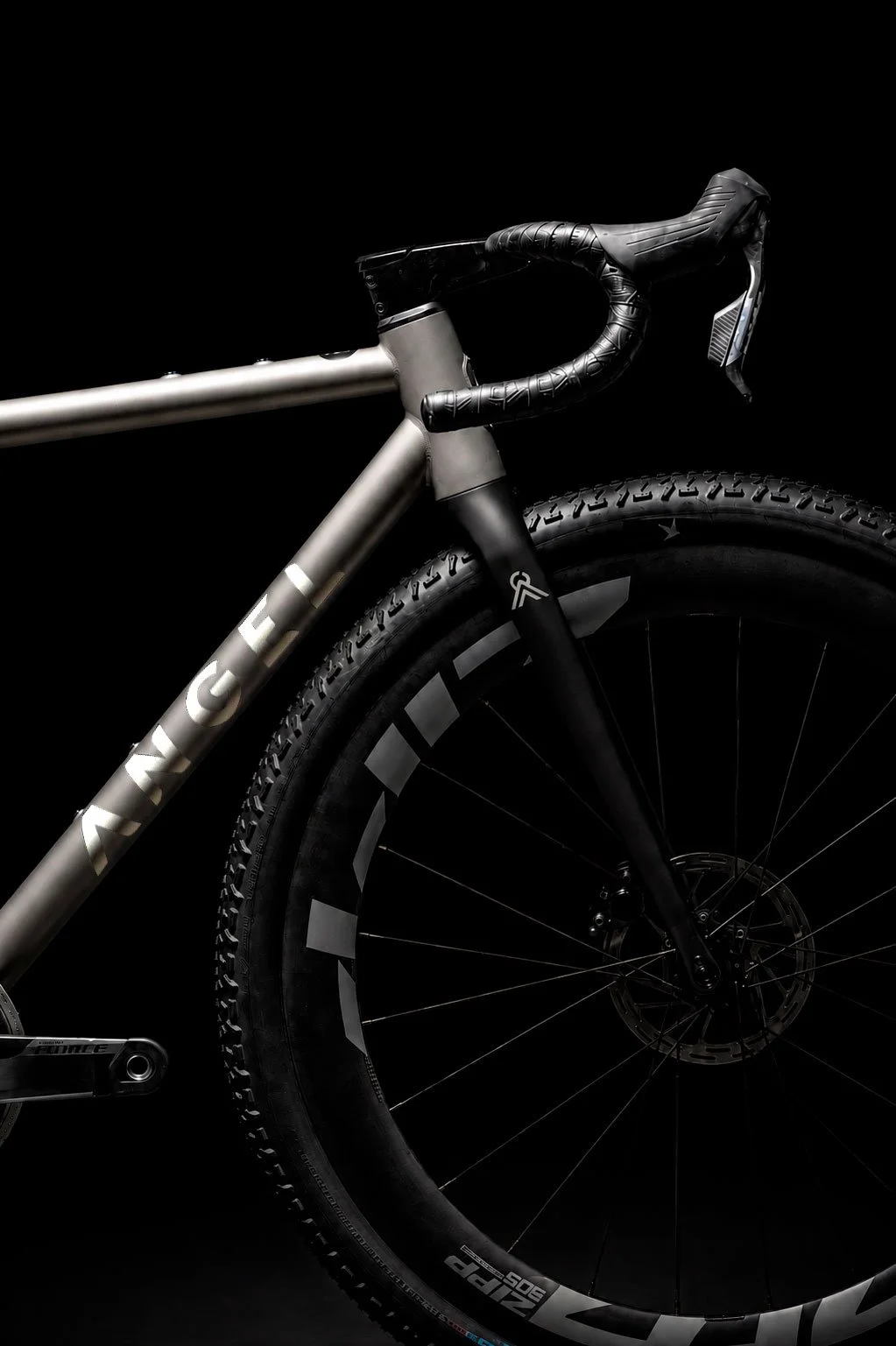

Black OTC

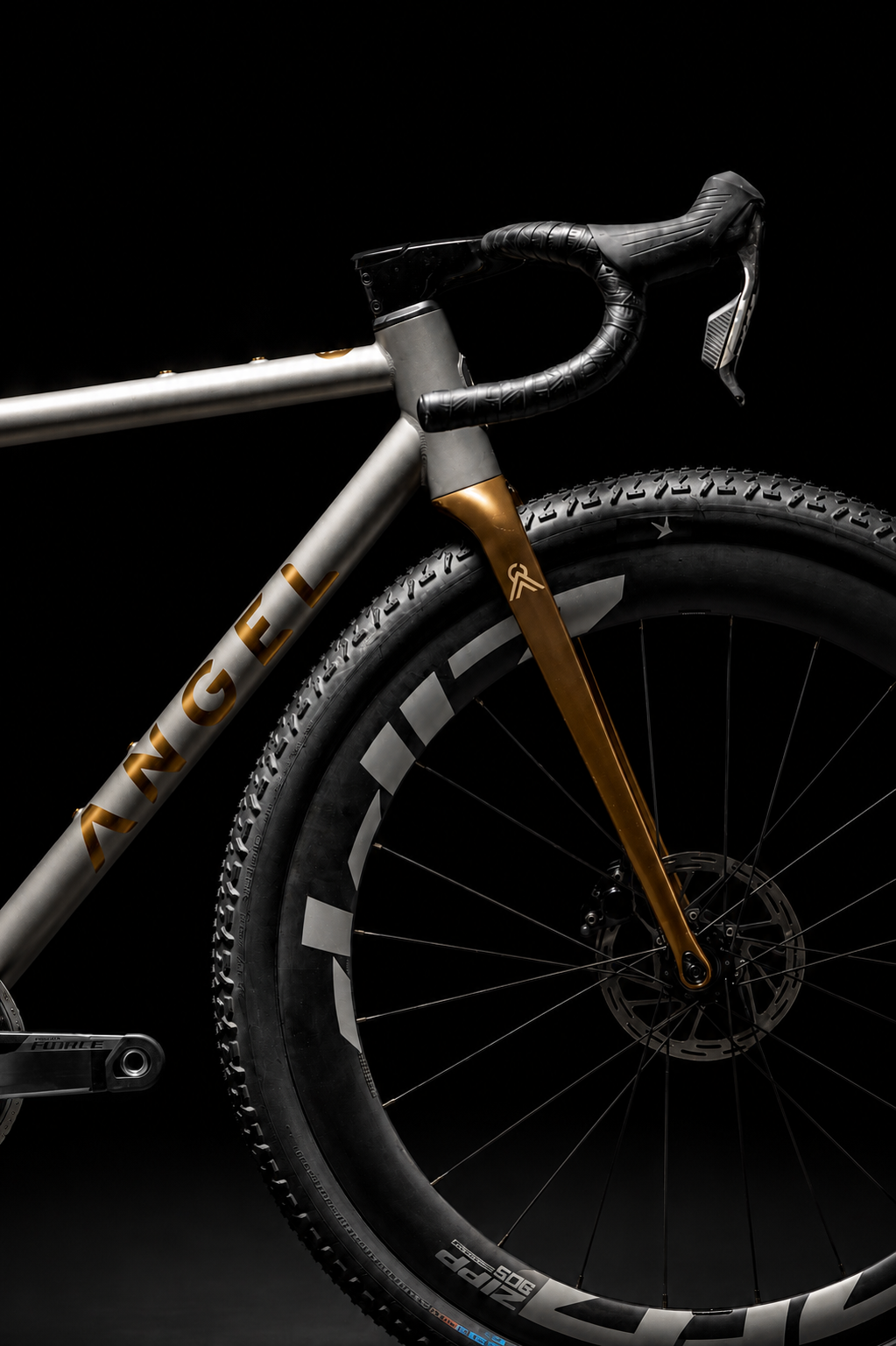

Whiskey OTC
Element
Essence Titanium Gravel
Frameset from € 2.976 incl. VAT
Complete builds from € 5.998 incl. VAT
Production time: 8-10 weeks
Worldwide delivery available.
Shipping costs and duties vary by country.
3/2.5 Aerospace-Grade Butted Titanium
Frame, Fork, Headset, Titanium Seat Clamp & Thru Axles
Gravel / All-Road / Everyday Exploration
S / M / L
27.2 mm
Flat Mount Disc
12×100 / 12×142
Up to 700×55 mm
Electronic & Mechanical Groupsets
Lifetime Warranty
ANGEL Cycle Works Element Titanium · 12×142 Thru Axle · Flat Mount Disc · T47 BB · Internal Cable Routing

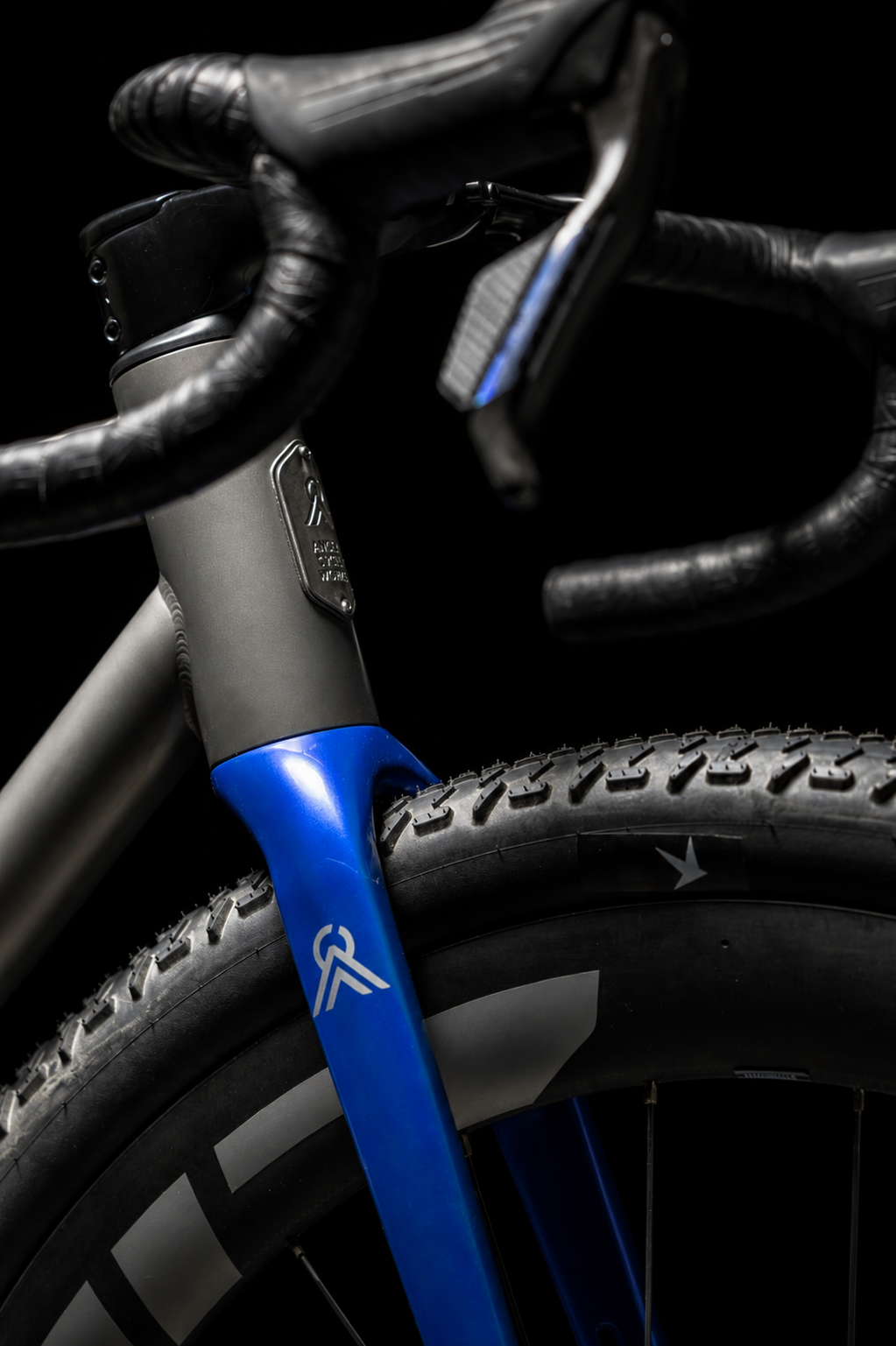

ANGEL Cycle Works GR Carbon · 12×100 Thru Axle · Flat Mount Disc · Internal Cable Routing
TOKEN Black-box Integrated IS52/IS52 · 1.5” Upper & Lower Bearings
ACW Carbon · 27.2 × 350 mm
TOKEN Ninja T47 Inboard · M47×86 · SRAM DUB
ACW GR Carbon · Fully Integrated Cable Routing
Bar: 380 / 400 / 420 mm · Stem: 80 / 90 / 100 / 110 mm
ACW Black Tape
Selle Italia Novus Evo Boost
ACW Alloy · 31.8 mm · Mud Protector

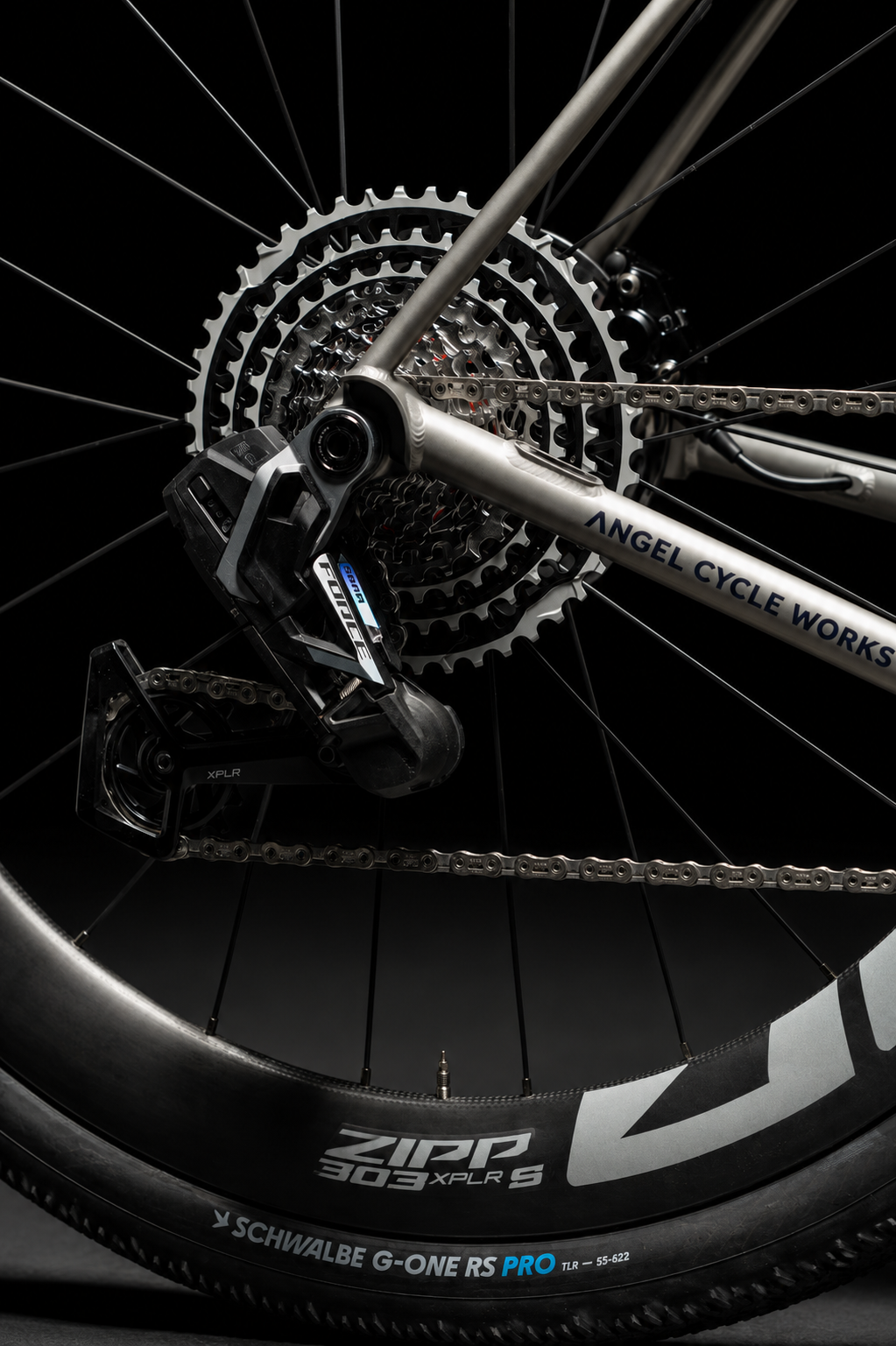

SRAM Force XPLR E1
Flat Mount · Front: 150 / 180 · Rear: 140 / 160
ZIPP 303 S XPLR · 700c
SCHWABLE TBS · 700×50c · Max. Clearance 55c
SRAM Force XPLR E1 1× · 165 / 170 / 172.5 mm
42T
ACW Alloy · 12×100 · L122.5 · M12×1.5 · TL15
ACW Alloy · 12×142 · L164.5 · M12×1.0 · TL15

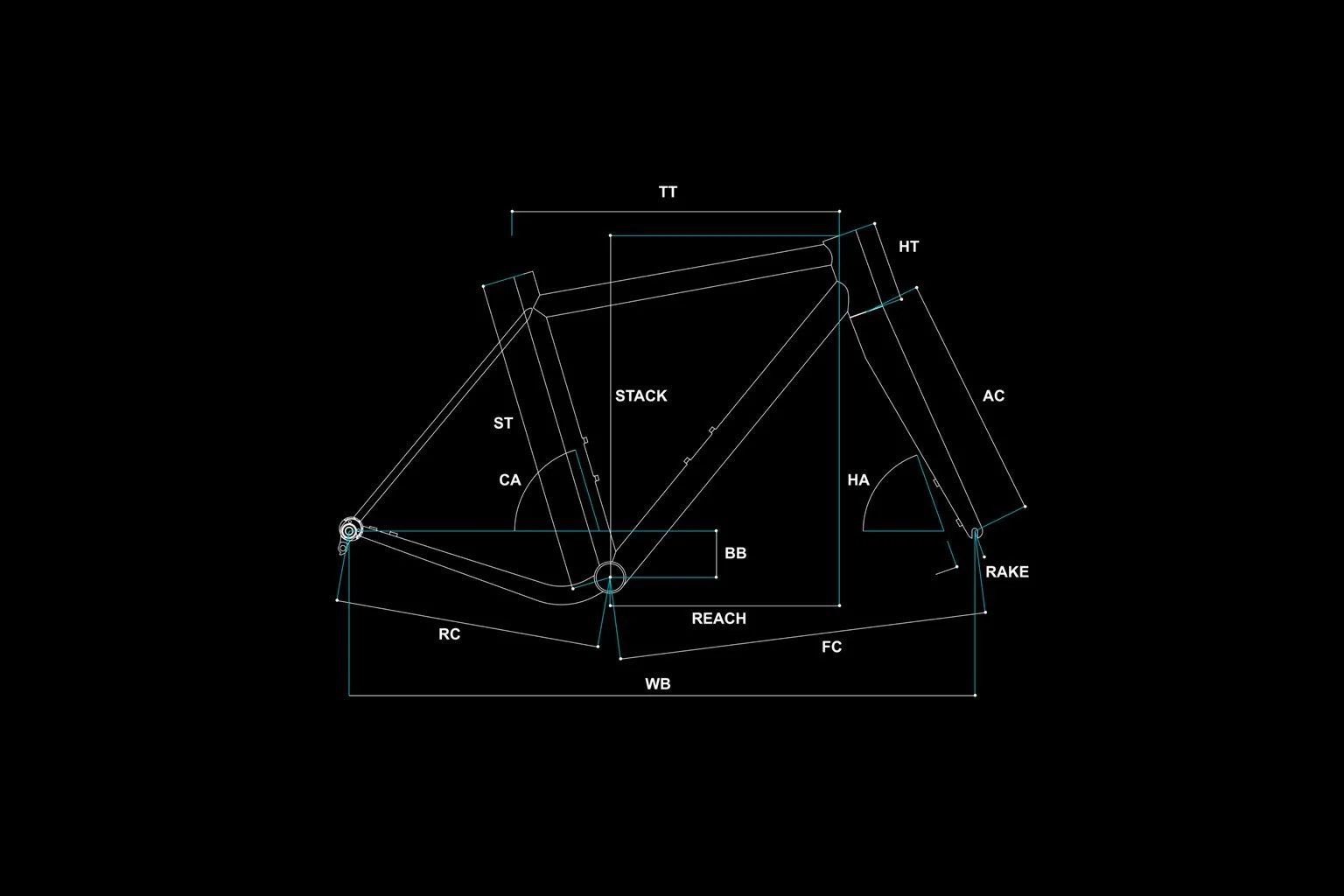

| S | M | L | |
|---|---|---|---|
| Reach | 370 mm | 384 mm | 391 mm |
| Stack | 552 mm | 573 mm | 596 mm |
| TT | 529 mm | 549 mm | 562 mm |
| WB | 1014 mm | 1030 mm | 1035 mm |
| RC | 432 mm | 432 mm | 432 mm |
| BB | 75 mm | 75 mm | 75 mm |
| CA | 73.5° | 73.5° | 73.5° |
| HA | 70.5° | 71.0° | 72.0° |
| ST | 510 mm | 530 mm | 550 mm |
| HT | 130 mm | 150 mm | 170 mm |
| RAKE | 47 mm | 47 mm | 47 mm |
| AC | 400 mm | 400 mm | 400 mm |
