The Heaven is our interpretation of contemporary titanium road performance.
Built around signature 3D printed titanium lugs manufactured in Spain and paired with lightweight aerospace-grade butted tubing, it delivers a uniquely balanced ride feel — precise under effort, composed over distance.
Designed for fast road riding, long mountain days and modern endurance performance, Heaven combines speed, refinement and the unmistakable ride quality only titanium can offer.
Clearance for up to 35mm tires.
Built Around Precision
Heaven combines advanced titanium manufacturing with a deeply refined road feel.
The 3D printed lug construction allows precise tuning of stiffness, weight distribution and ride response while maintaining the unmistakable smoothness and durability titanium is known for.
Designed for riders seeking speed, composure and long-distance capability without compromise.
Technical Overview

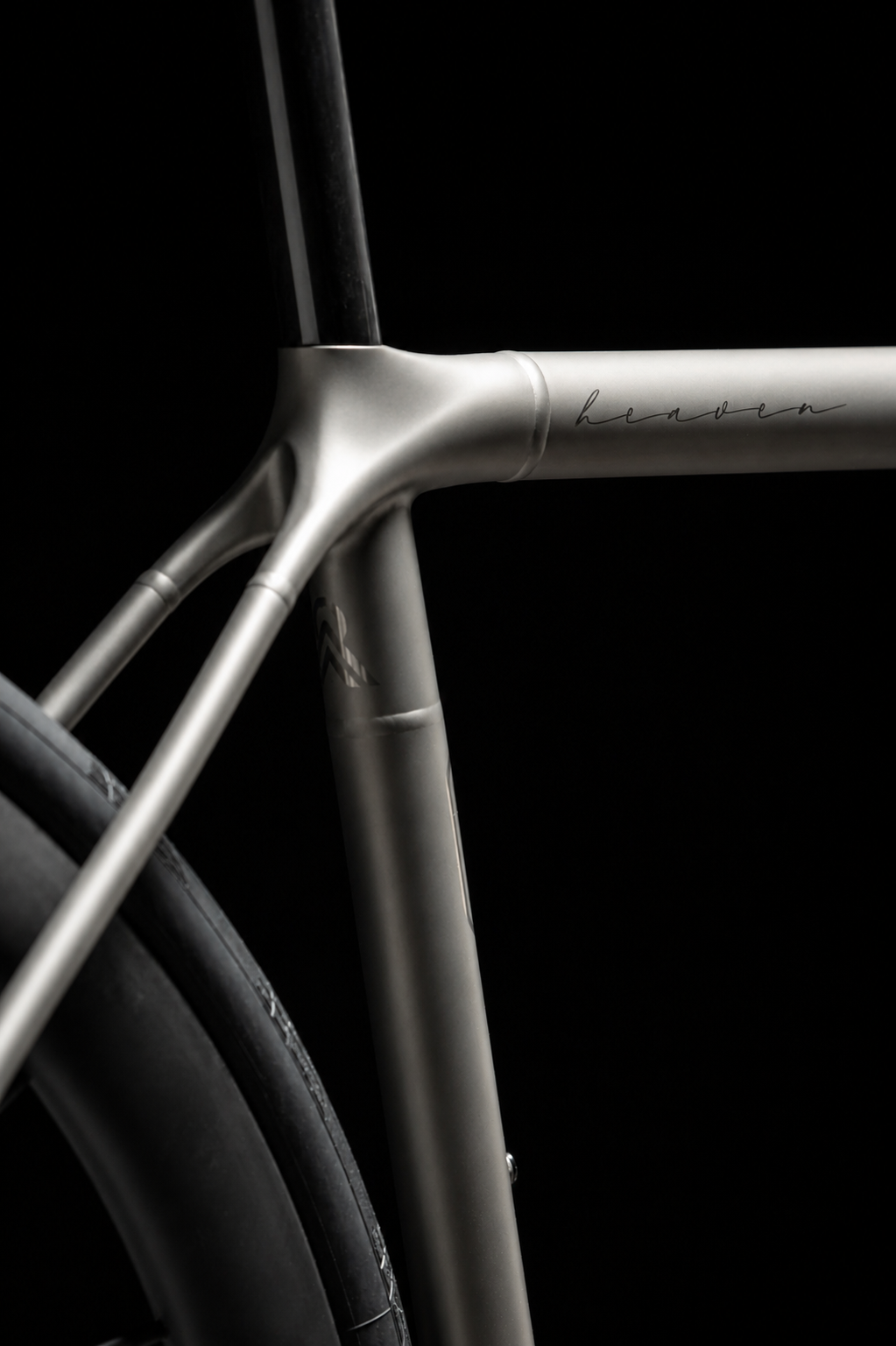

3D printed titanium lugs manufactured in Spain.
3/2.5 aerospace-grade butted titanium tubing.
IS52 headtube with full internal cable routing.
BB386 PF46 bottom bracket platform.
Electronic drivetrain compatible (1x / 2x).
UDH dropout system.
Flat mount disc platform.
700x35c tire clearance.
Frame weight from 1250g depending on size.
Available in:
52 / 54 / 56 / 58 / Custom Geometry
HEAVEN
Titanium Road Precision
Frameset from €6,585
Complete builds from €8,960
Worldwide delivery available.
Each Heaven begins with a conversation.
3D Printed Titanium Lugs & Aerospace-Grade Titanium Tubes
ACW Carbon Road Fork
Road / Endurance / Fast All-Day Riding
52 / 54 / 56 / 58
27.2 mm
Flat Mount Disc
12×100 / 12×142
Electronic & Mechanical
2 Years — EU Regulations

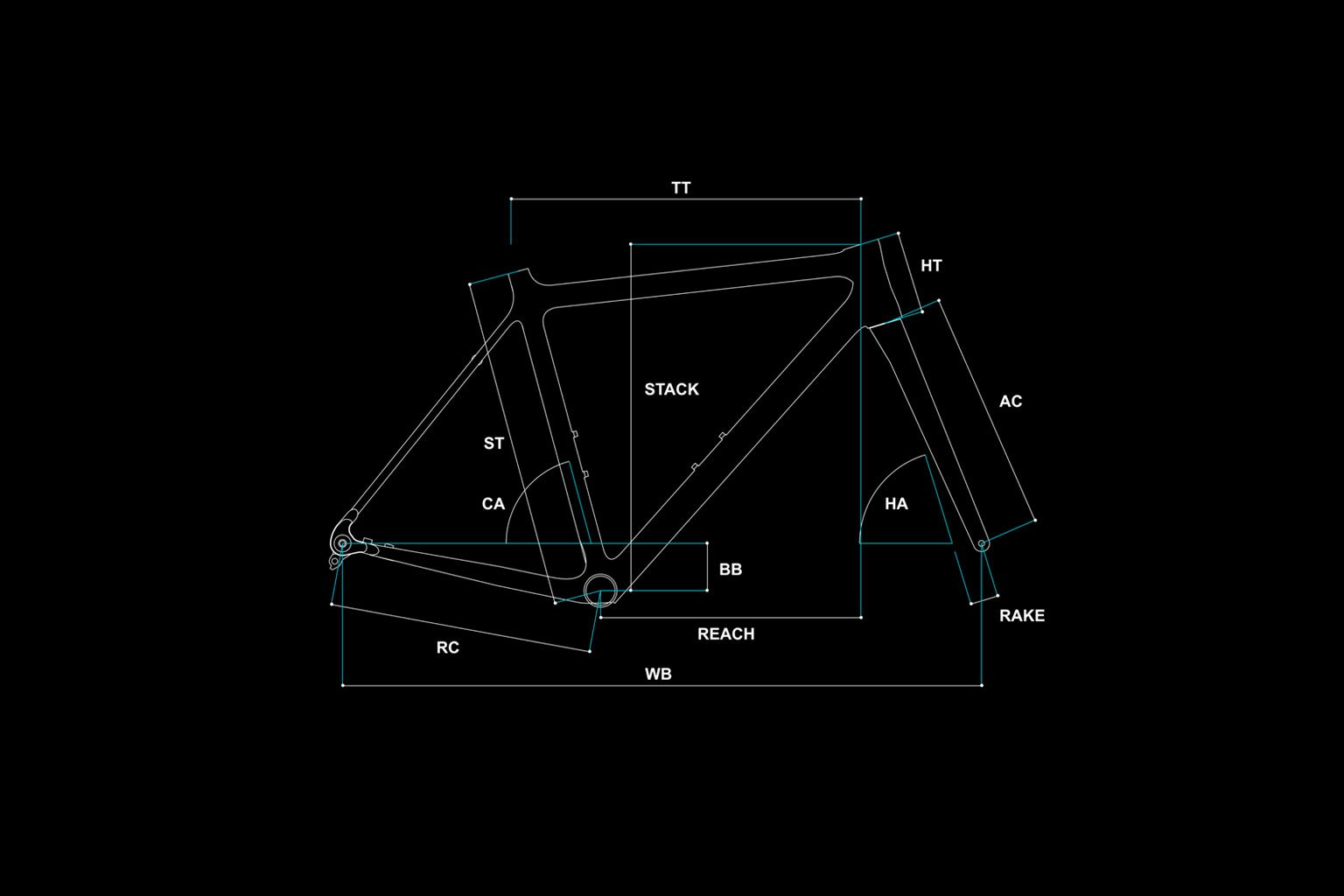

| 52 | 54 | 56 | 58 | |
|---|---|---|---|---|
| Reach | 397 | 402 | 411 | 420 |
| Stack | 517 | 535 | 555 | 581 |
| Top Tube | 530 | 540 | 560 | 576 |
| Wheelbase | 980 | 987 | 998 | 1014 |
| Chainstay | 405 | 405 | 405 | 405 |
| BB Drop | 74 | 73 | 72 | 72 |
| Seat Angle | 75° | 75° | 74.5° | 74.5° |
| Head Angle | 72.5° | 73° | 73.5° | 73.5° |
| Seat Tube | 490 | 510 | 530 | 550 |
| Head Tube | 109 | 127 | 147 | 174 |
| Fork Rake | 43 | 43 | 43 | 43 |
| Fork Length | 371 | 371 | 371 | 371 |
