Heaven

Titanium Road Precision

The image features the word 'heaven' written in a cursive, black font on a white background.

The Angel Heaven represents the ultimate in road bike performance. Featuring our signature 3D printed titanium lugs manufactured in Spain, combined with lightweight aerospace-grade butted tubes, this bike delivers uncompromising speed and efficiency on every ride.

Whether you're competing in races, conquering mountain passes, or enjoying long endurance rides, the Heaven provides the perfect balance of lightweight construction, elegance, and the legendary comfort that only titanium can deliver, with up to 35mm tire clearance

Close-up view of a metallic bicycle fork and part of the frame, with a black tire visible at the bottom.

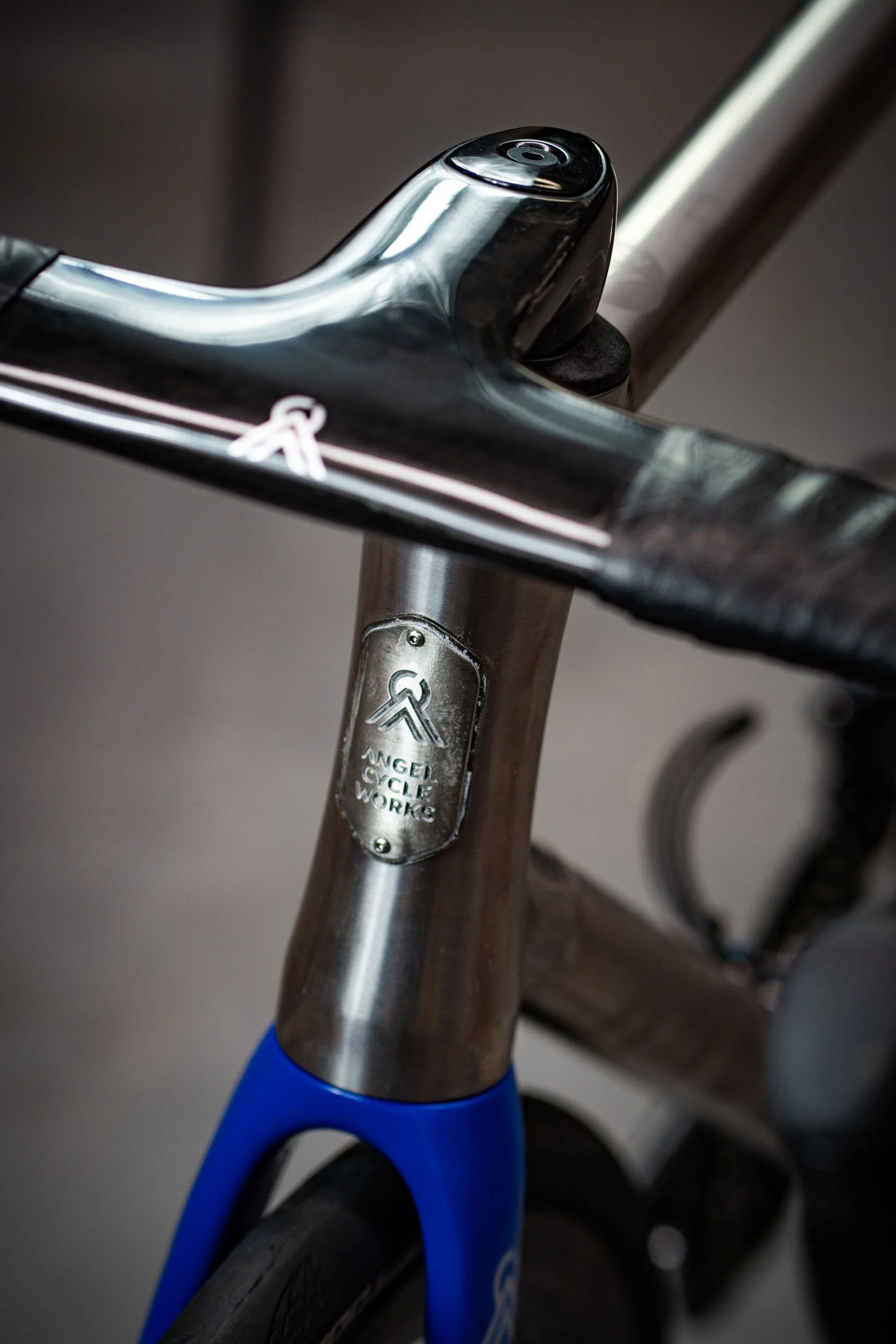

Close-up of a bicycle frame with a metal badge reading 'Angel Cycle Works' and a logo, featuring a black handlebar and part of a blue fork.

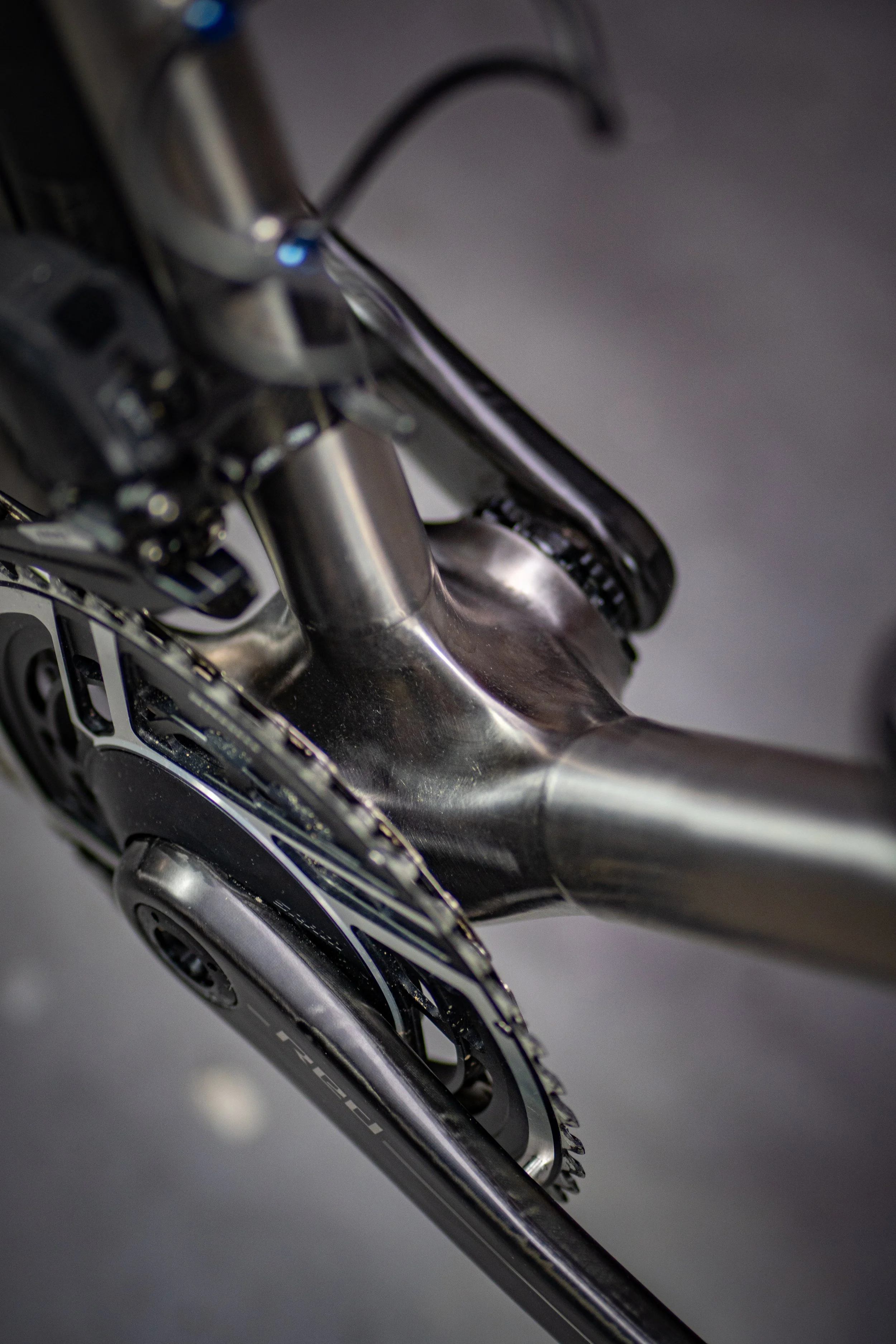

Close-up of a bicycle's bottom bracket area with a carbon fiber fork and chainring, highlighting the bike's high-performance components.

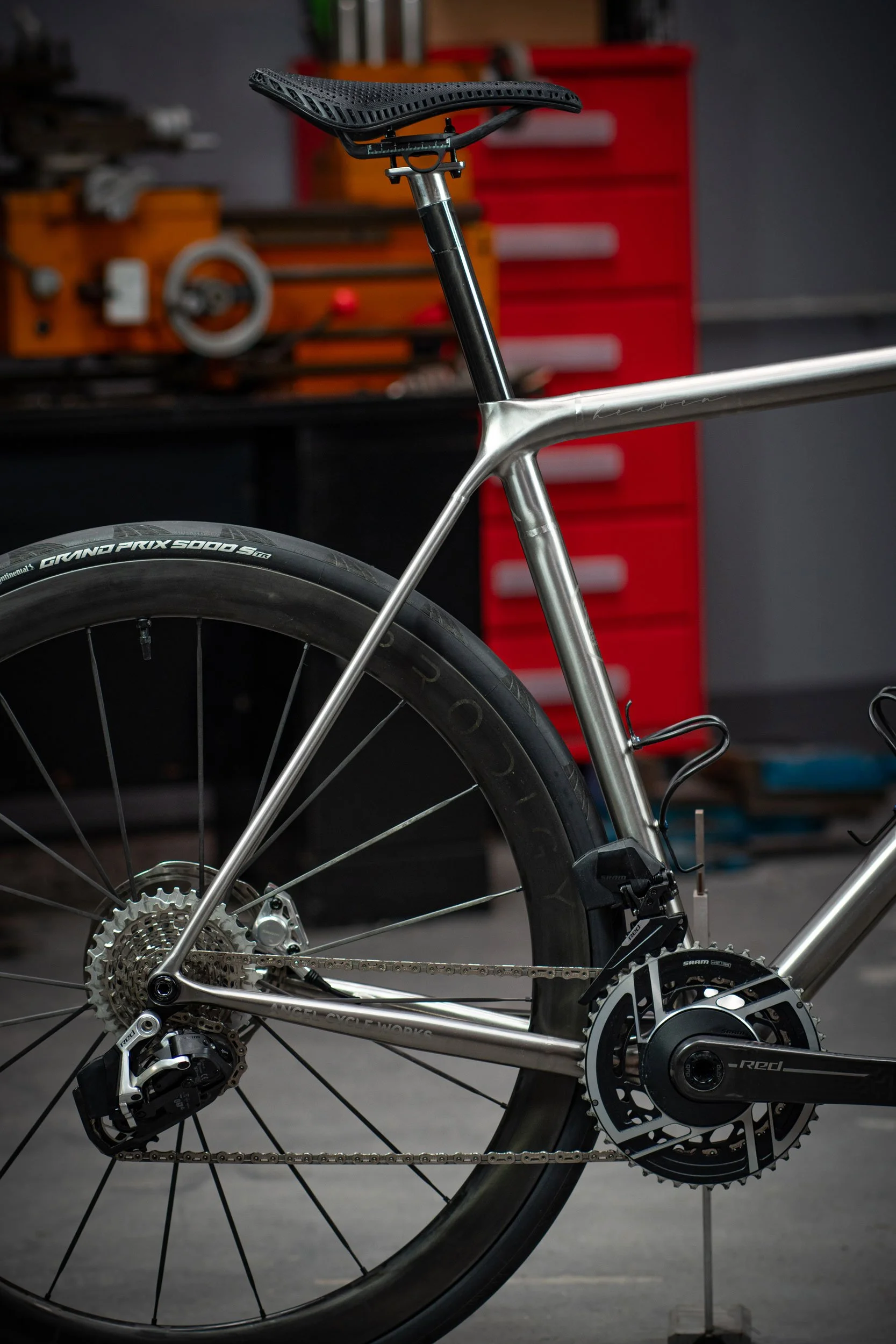

A sleek silver racing bicycle with a black saddle, gear system, and large rear tire, set in a workshop with a red tool chest and equipment in the background.

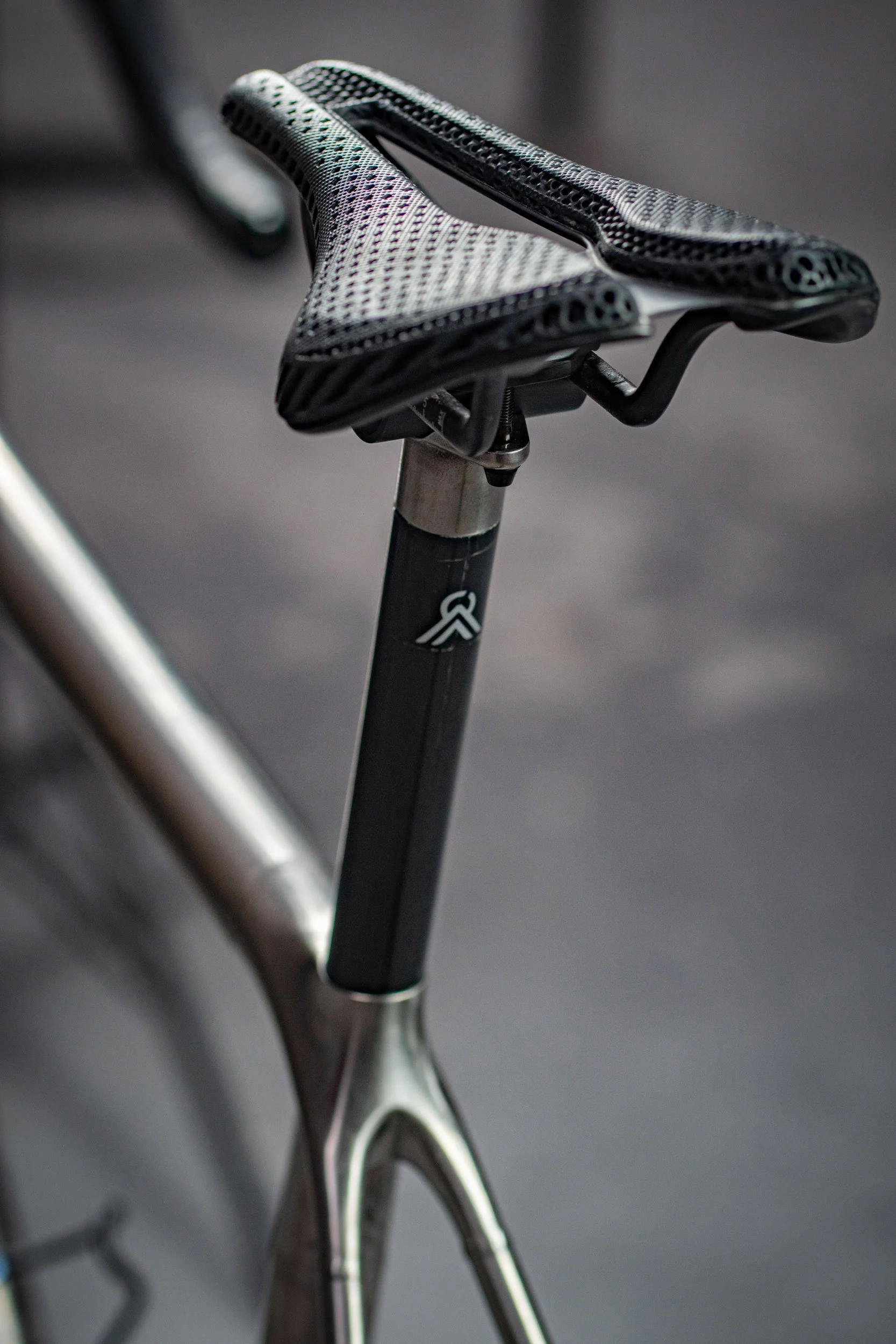

Close-up of a bicycle saddle and seat post, with part of the bike frame visible in the background.

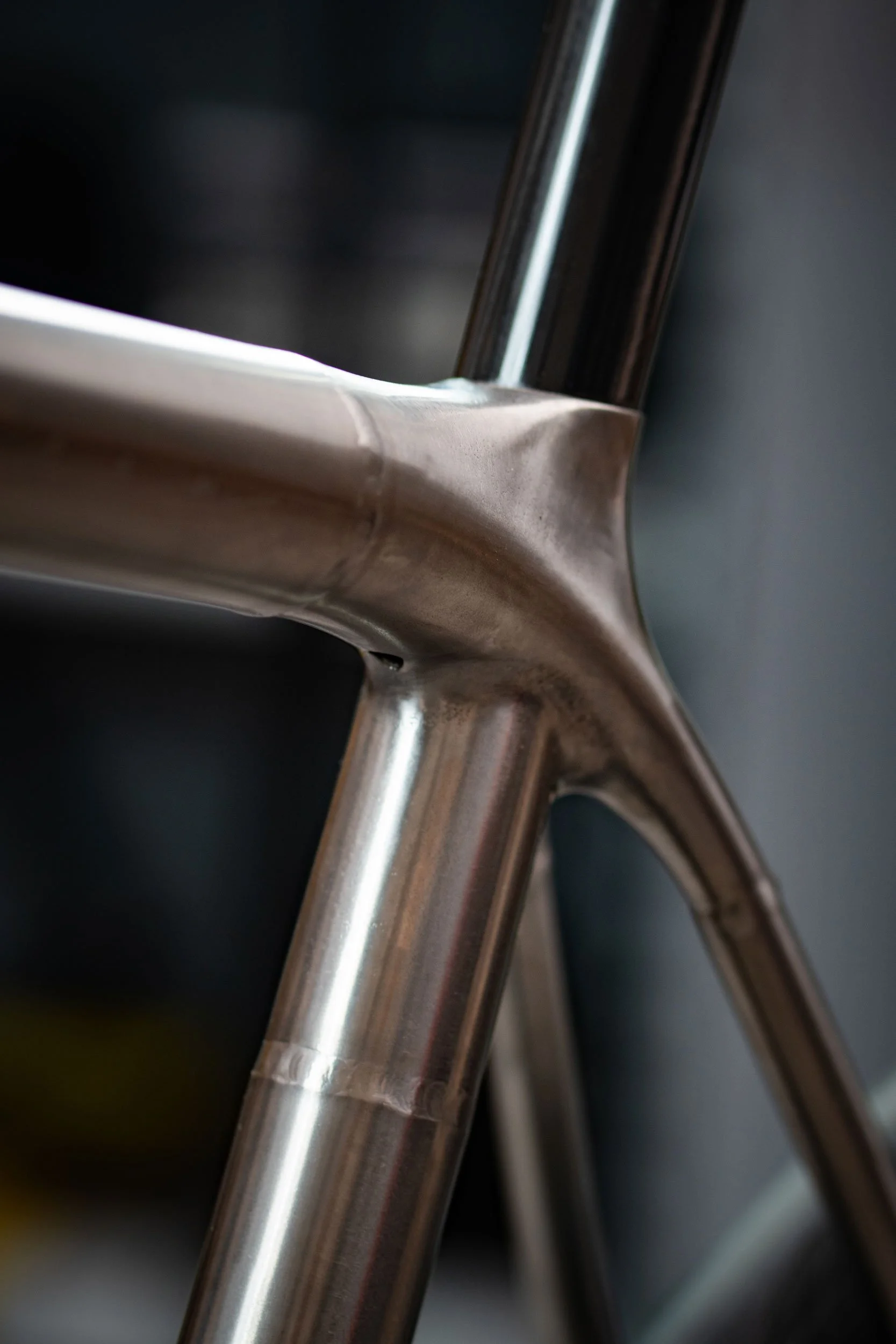

Close-up of a stainless steel bike frame joint showing smooth welds and matte finish.

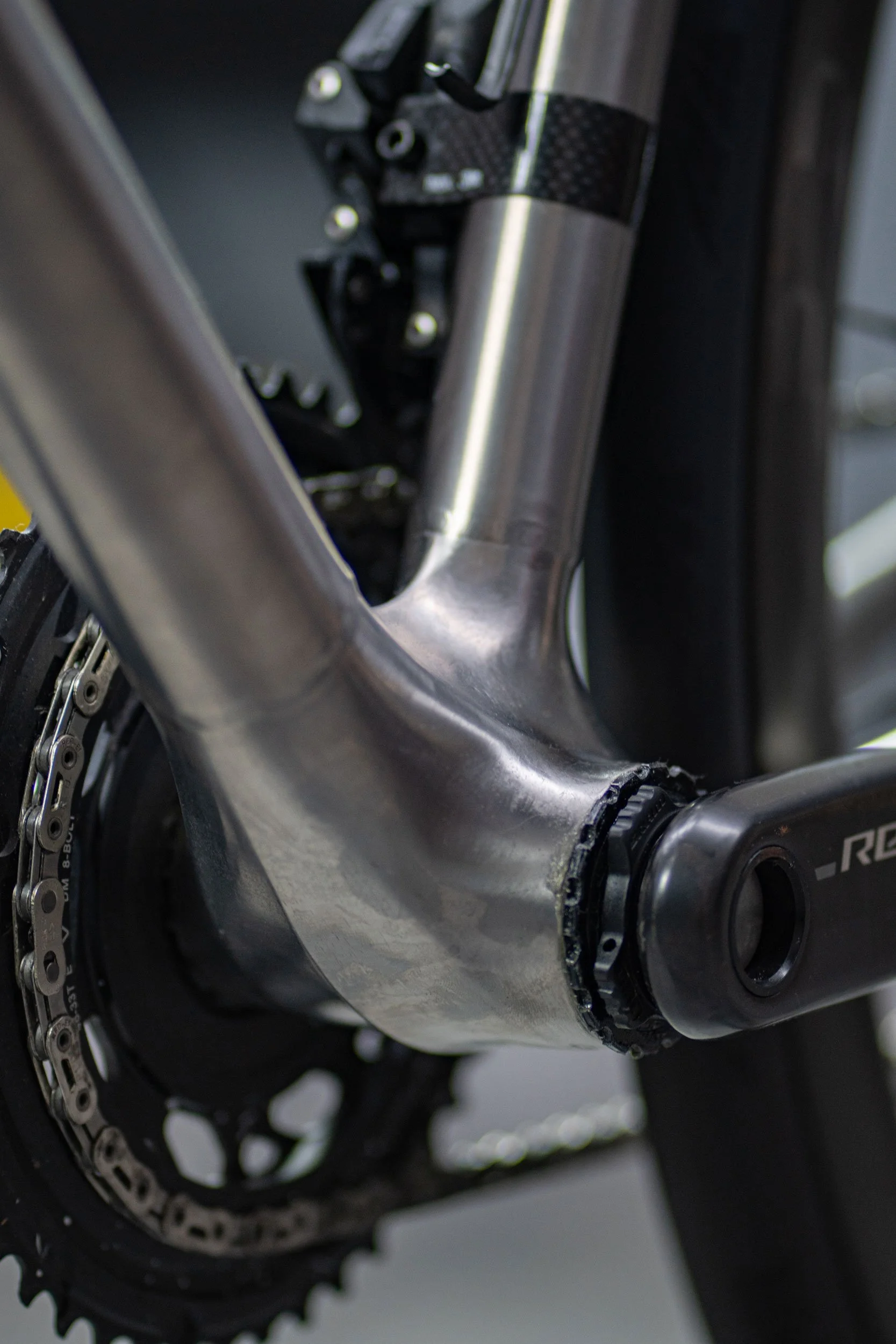

Close-up of a bicycle's bottom bracket area showing the chainring, crank arm, and part of the frame.

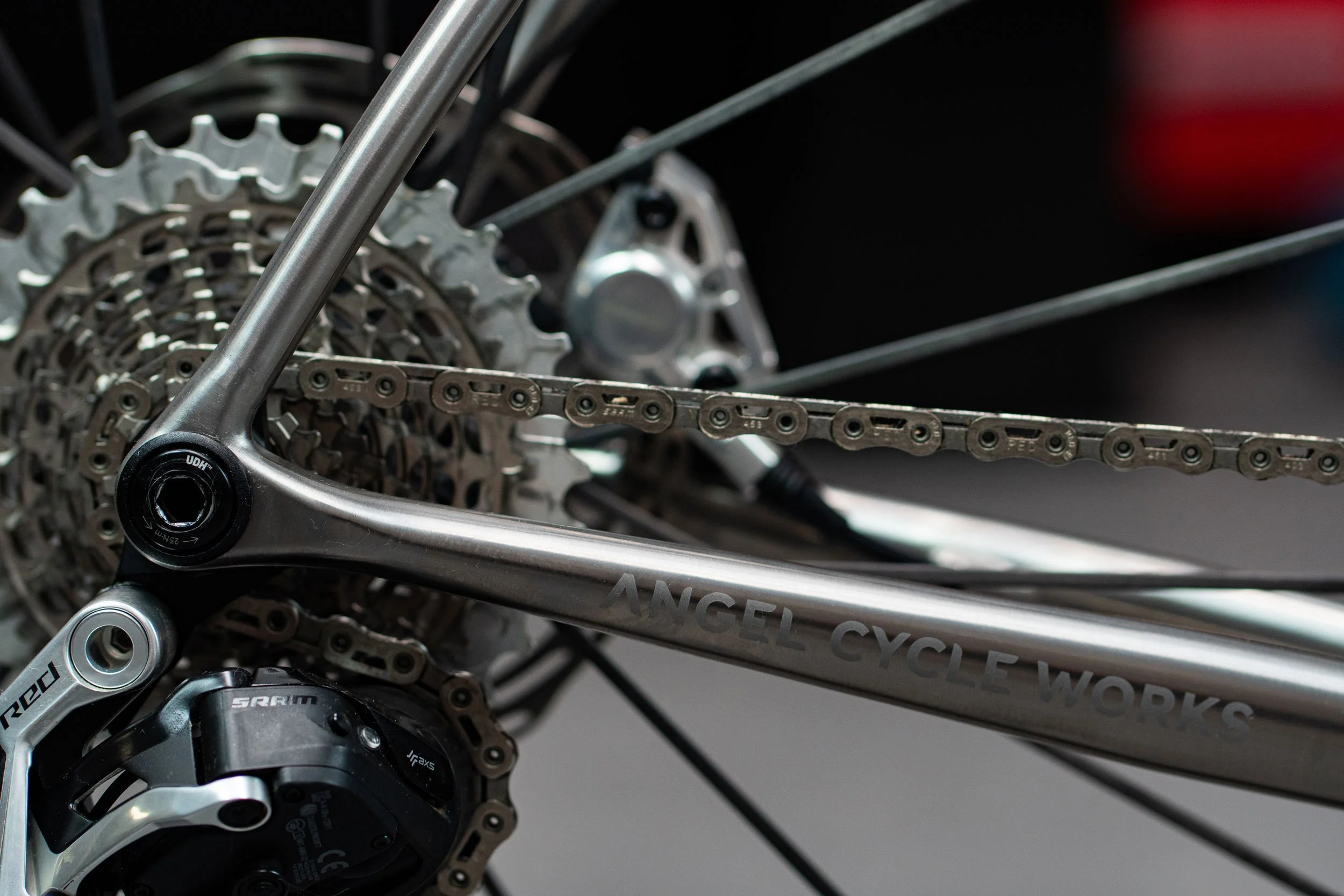

Close-up of a modern bicycle's rear gear cassette, chain, derailleur, and part of the frame with 'Angel Cycle Works' logo.

Heaven Specs

Titanium 3D printed lugs (made in Spain) and 3/2.5 titanium aerospace butted tubes.IS52 Headtube for Full Internal cable routing.

• Oversized BB386 PF46 Bottom Bracket.

• 31.8mm Seat Tube for 27.2mm seatpost, hidden titanium seatclamp and

31.8mm derailleur clamp.

• UDH dropout.

• Ready for electronic drive systems (1x and 2x).

• Flatmount disc mount. Rear 140mm. Front 160mm.

• 700x35c tire clearance.

Frame weight from 1.250gr to 1.450gr depending on size.

Other components: Fork (350gr), Headset (78gr), Handlebar (320gr), Seatpost (135gr)

Sized (52, 54, 56 y 58) and Custom Geometry.

52 54 56 58
Reach 397 mm 402 mm 411 mm 420 mm
Stack 517 mm 535 mm 555 mm 581 mm
Top tube length, hrz. 530 mm 540 mm 560 mm 576 mm
Axles length 980 mm 987 mm 998 mm 1014 mm
Chainstays length 405 mm 405 mm 405 mm 405 mm
BB drop 74 mm 73 mm 72 mm 72 mm
Seat tube angle 75° 75° 74.5° 74.5°
Head tube angle 72.5° 73° 73.5° 73.5°
Seat tube length 490 mm 510 mm 530 mm 550 mm
Head tube length 109 mm 127 mm 147 mm 174 mm
Fork rake 43 mm 43 mm 43 mm 43 mm
AC fork length 371 mm 371 mm 371 mm 371 mm

Heaven // Titanium Road Precision // Touch the Sky

Start Process
