Miracle

Gravel bike engineering

A person wearing a red shirt holding a large fish over a river, standing on a boat in a natural outdoor setting.

The Angel Miracle represents the pinnacle of gravel bike engineering. Featuring our signature 3D printed titanium lugs manufactured in Spain, combined with aerospace-grade butted tubes, this bike delivers uncompromising performance across any terrain.

Whether you're tackling technical singletrack, grinding out gravel miles, or commuting through the city, the Miracle adapts to your riding style with its versatile geometry and advanced material construction.

A modern road bicycle with a gray frame, black handlebars, and tan tires, standing indoors on a concrete floor.

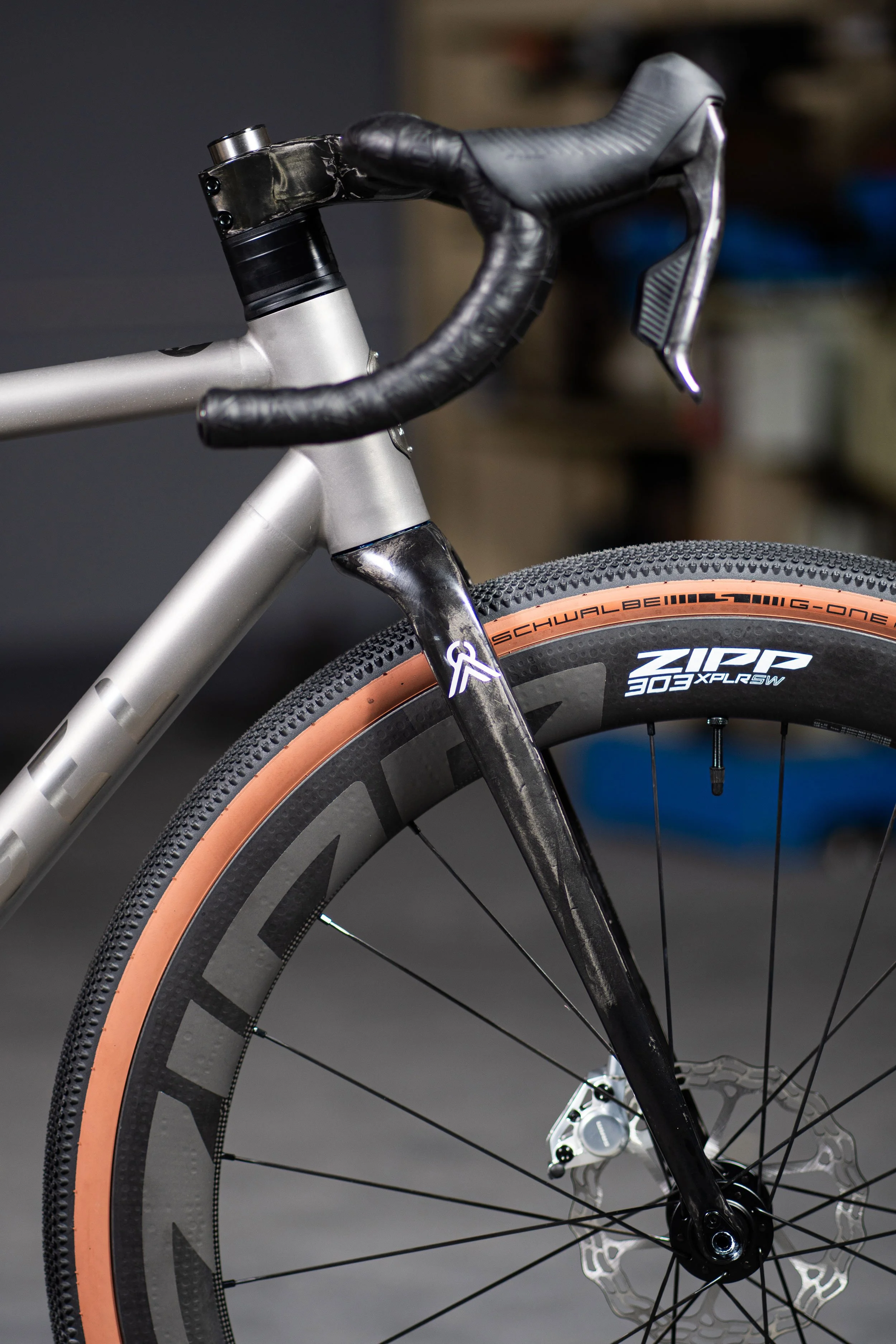

Close-up of a modern road bicycle's front wheel, fork, and handlebars. The black front wheel has a tan sidewall tire, and the bike features disc brakes. The frame is metallic gray, with the brand name partially visible.

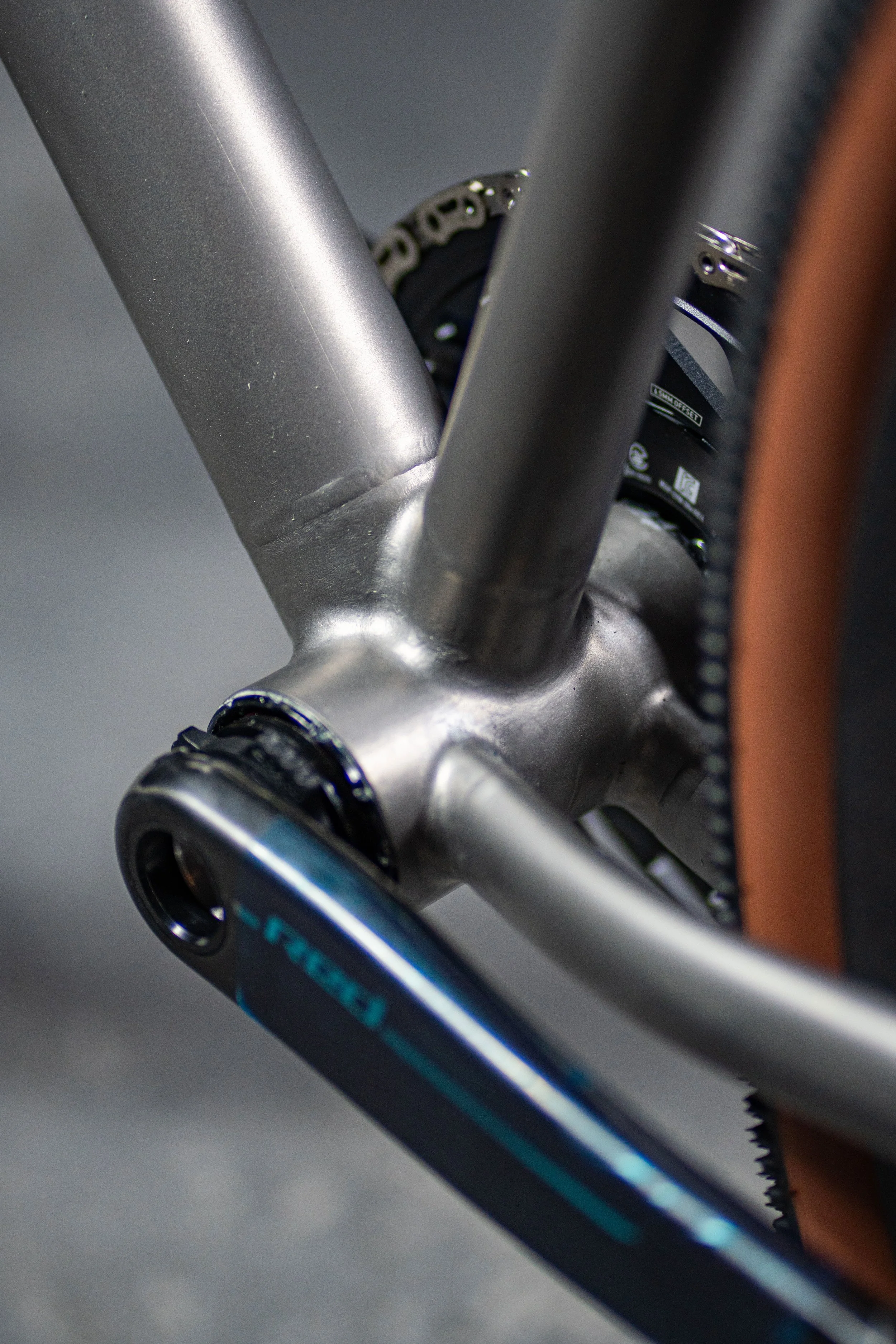

Close-up of a modern bicycle's crankset and bottom bracket area, including the chainring, crank arm, and part of the frame.

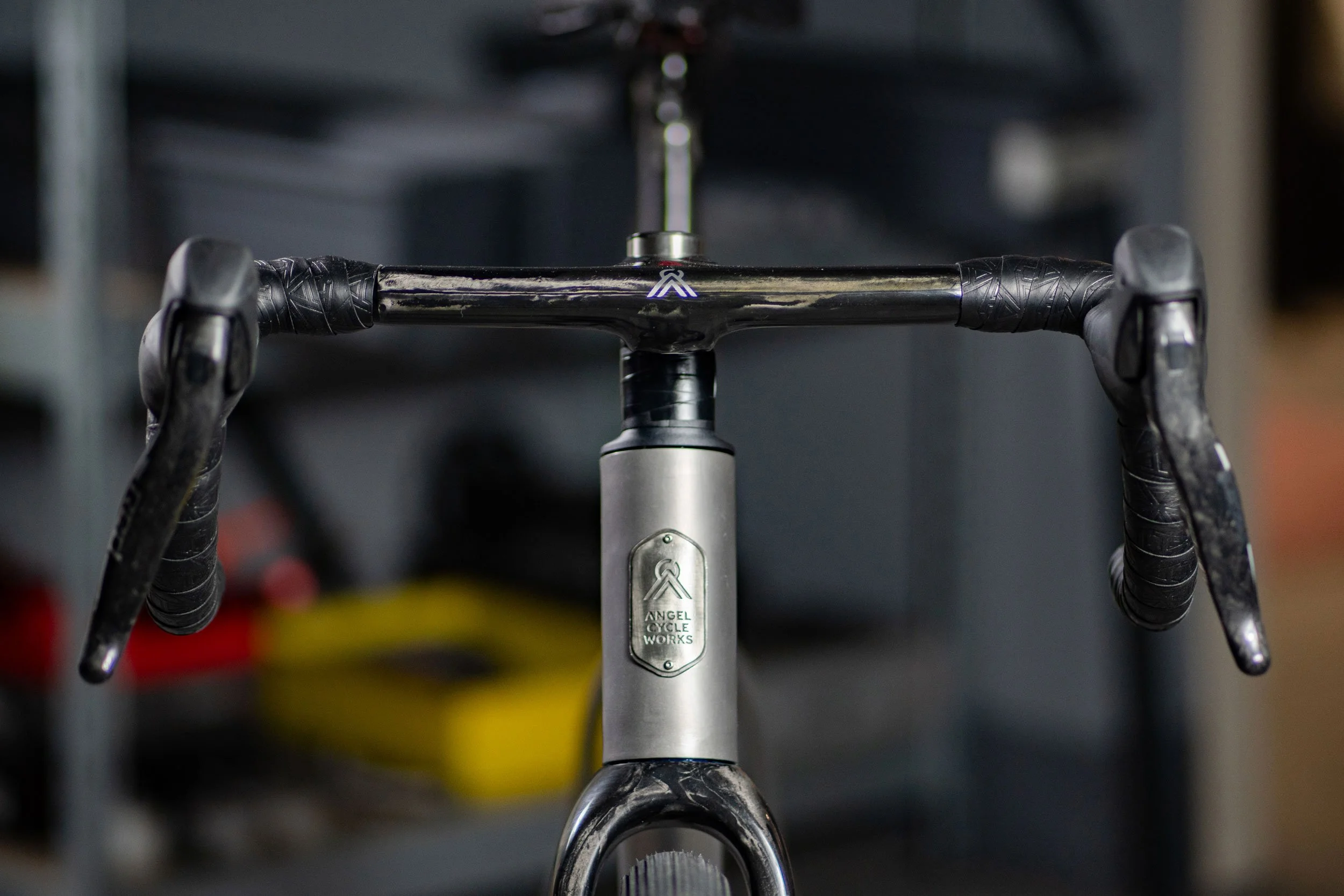

Close-up of a bicycle's handlebar and stem with a silver Angel Cycle Works logo, set in a workshop environment.

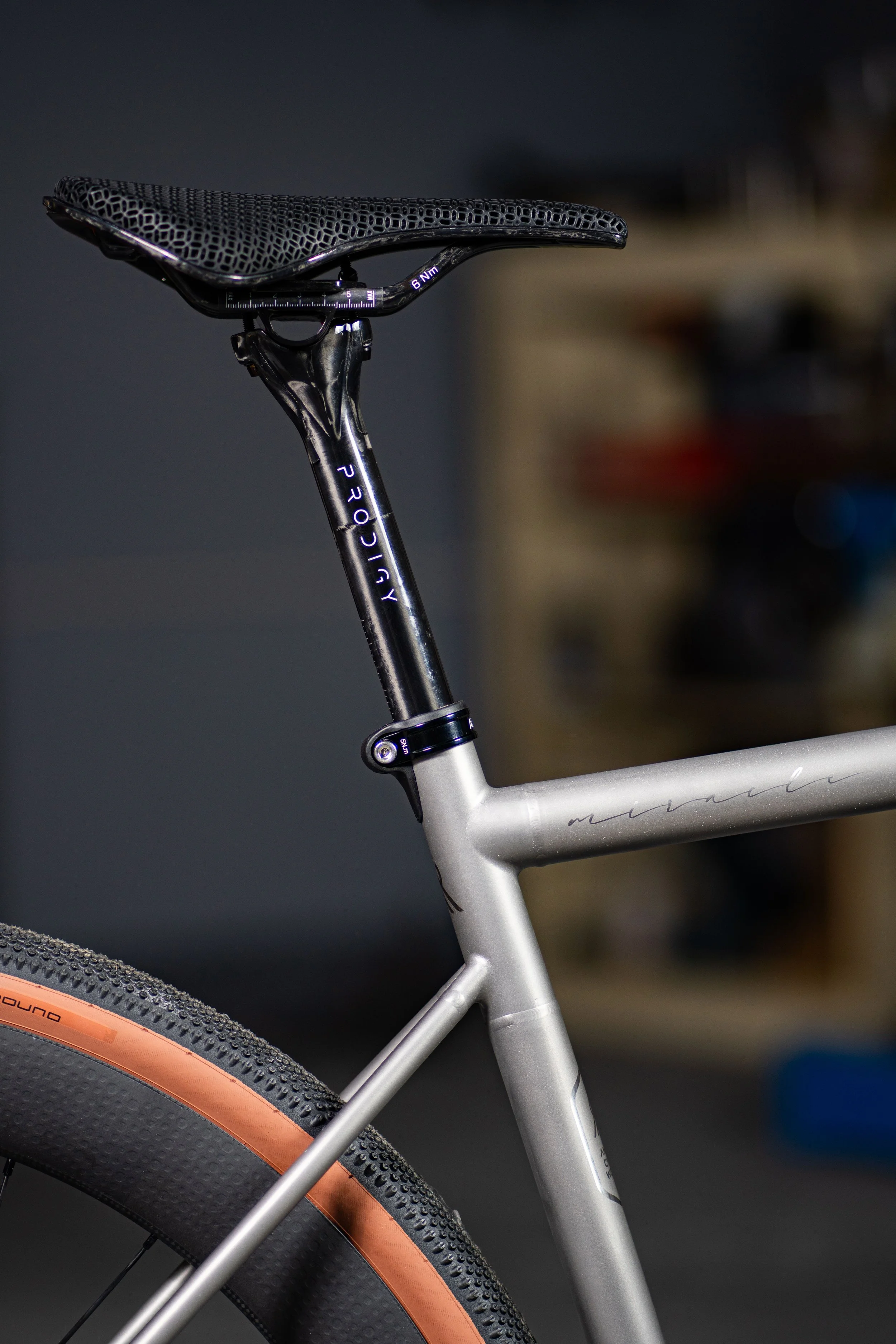

Close-up of a bicycle's saddle, seat post, and rear wheel with a black tire and orange sidewall.
Close-up of a silver bicycle frame with the text 'ONE LIFE' engraved, and part of a black and tan bicycle tire.
Close-up view of a bicycle's rear derailleur, cassette, and chain, with parts labeled 'XPLR' and 'RDX'.

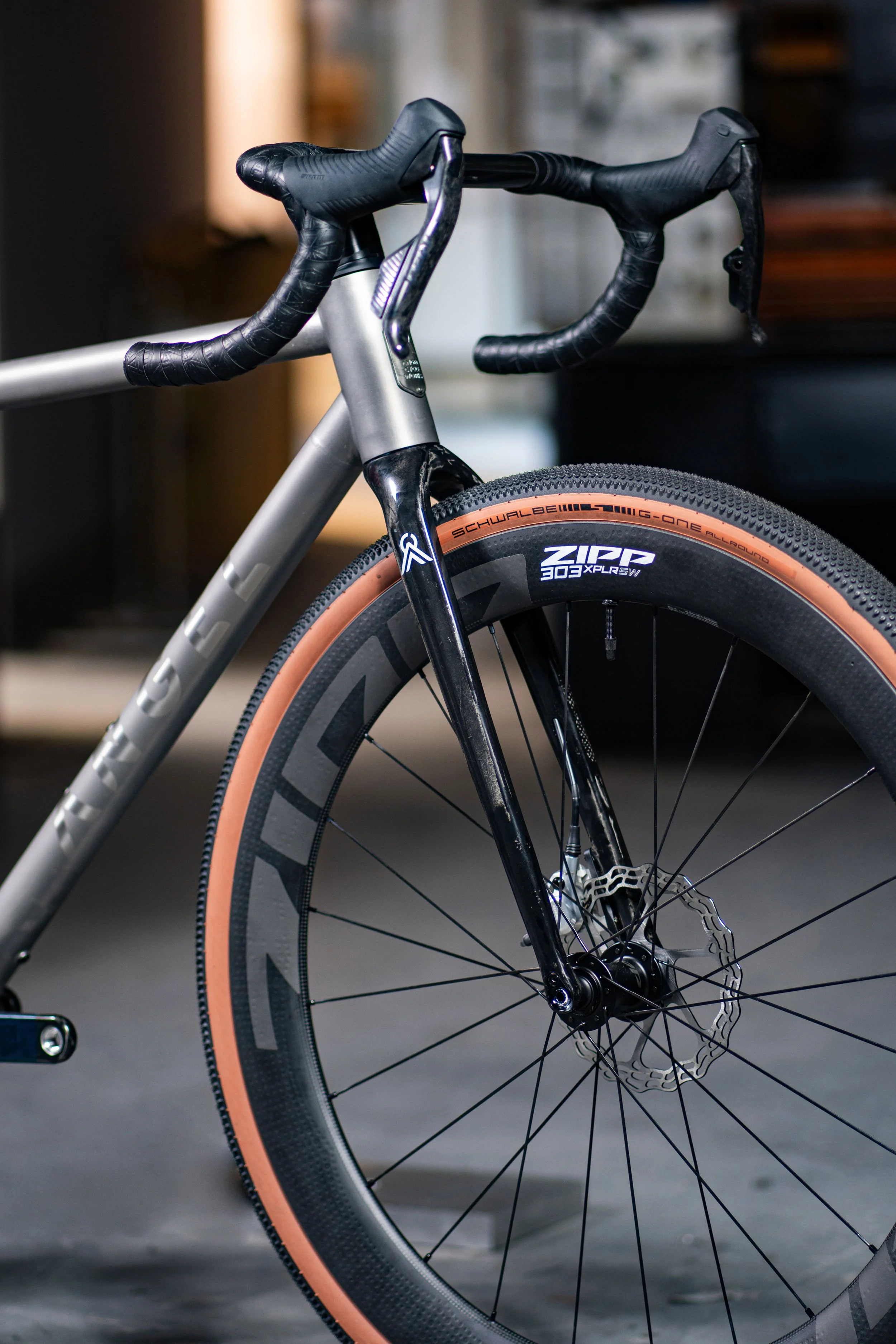

Close-up of a modern bicycle's front section, showing the handlebar, fork, and wheel with a tire labeled 'Schwalbe' and 'Zip 300 XPLRSW'.

Miracle Specs

Titanium 3D printed lugs (made in Spain) and 3/2.5 titanium aerospace butted tubes.

• IS52 Headtube for Full Internal cable routing.

• Oversized BB386 PF46 Bottom Bracket.

• 31.8mm Seat Tube for 27.2mm seatpost and 31.8mm standard seatclamp

and derailleur clamp.

• UDH dropout.

• Ready for electronic and mechanical drive systems (1x and 2x).

• Flatmount disc mount. Rear 140mm. Front 160mm.

• 700x50c tire clearance.

Frame weight from 1.450gr to 1.550gr depending on size.

Other components: Fork (380gr), Headset (78gr), Handlebar (380gr), Seatpost (135gr)

Sized (52, 54, 56 y 58) and Custom Geometry.

52 54 56 58
Reach 376 mm 390 mm 397 mm 402 mm
Stack 533 mm 552 mm 574 mm 602 mm
Top tube length, hrz. 529 mm 549 mm 562 mm 570 mm
Axles length 1010 mm 1026 mm 1030 mm 1039 mm
Chainstays length 428 mm 428 mm 428 mm 428 mm
BB drop 75 mm 75 mm 75 mm 75 mm
Seat tube angle 73.5° 73.5° 73.5° 74.0°
Head tube angle 70.5° 71.0° 72.0° 72.5°
Seat tube length 500 mm 520 mm 540 mm 560 mm
Head tube length 109 mm 127 mm 147 mm 174 mm
Fork rake 47 mm 47 mm 47 mm 47 mm
AC fork length 395 mm 395 mm 395 mm 395 mm

Miracle // Gravel bike engineering // Defy the Limits
