The Gravel Project

The Gravel Project is a collaboration between Zara Athleticz and Ángel Cycle Works, combining technical precision with the artisanal passion of cycling.

From this partnership emerges a bicycle designed to explore without limits, where performance, beauty, and freedom come together in every detail.

"Two roads diverged in a wood, and I — I took the one less traveled by, and that has made all the difference"

ROBERT FROST – “The road not taken”

GRAVEL: THE ART OF GETTING LOST

Gravel doesn’t follow paths — it creates them. It is the purest essence of cycling: freedom without limits, speed without asphalt, and adventure without a fixed destination. It’s born from the instinct to explore the unknown, to feel the ground beneath the tyres, and to embrace the silence of the mountains as your only companion.

A gravel bike is more than a machine; it is an extension of the modern explorer — capable of bridging tarmac and dirt, precision and emotion. Light, resilient and elegant, it invites you to get lost in order to find yourself, turning every route into a story only you can write.

1 / 5

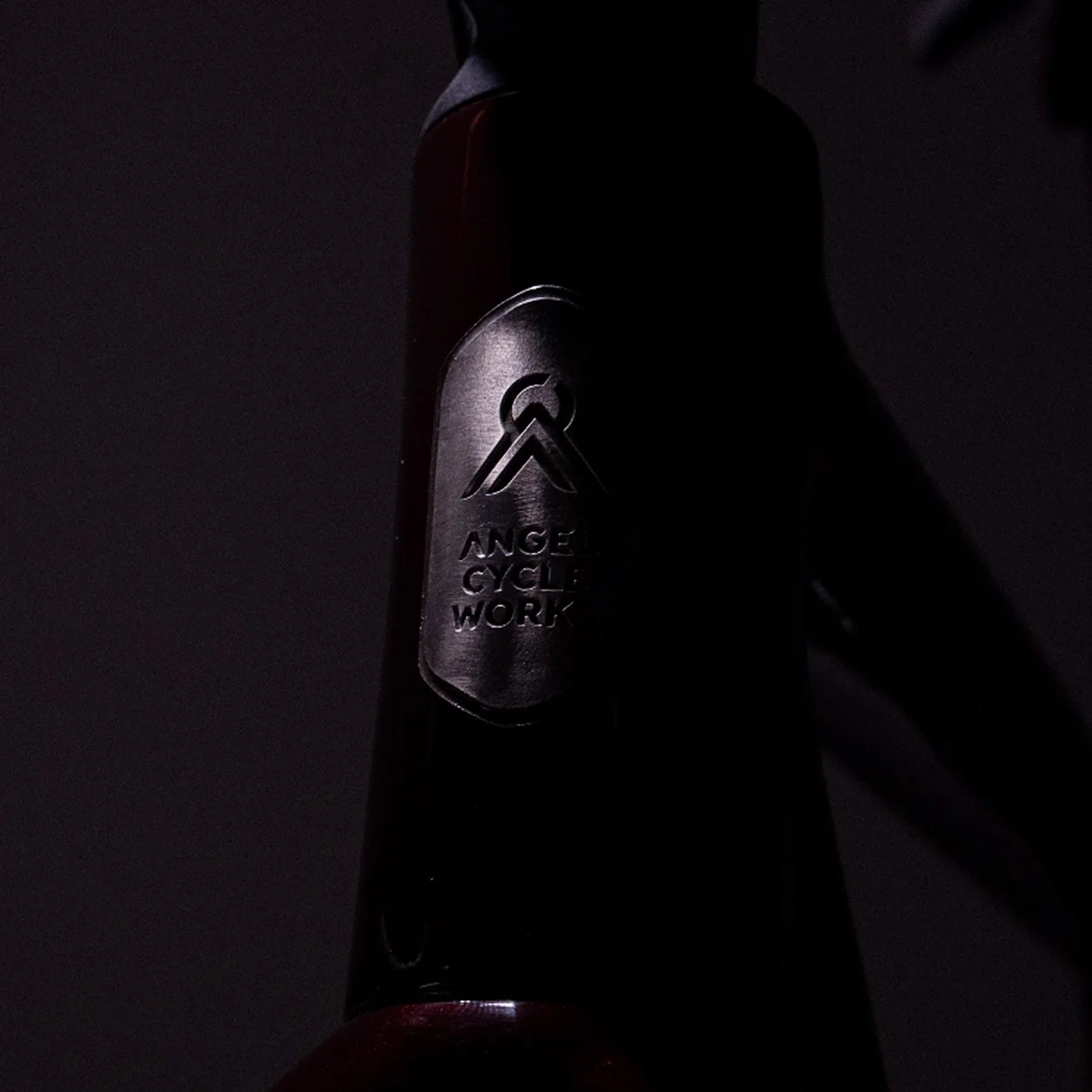

ANGEL CYCLE WORKS

Ángel Cycle Works builds every bicycle with an almost obsessive dedication to detail. Every weld, every junction, every finish reflects the soul of the person who crafts it and the one who will ride it.

Their bikes blend precision engineering with artisanal sensitivity, designed to deliver maximum performance and a beauty that stands the test of time.

More than objects, they are unique pieces born from a deep respect for material, form and speed.

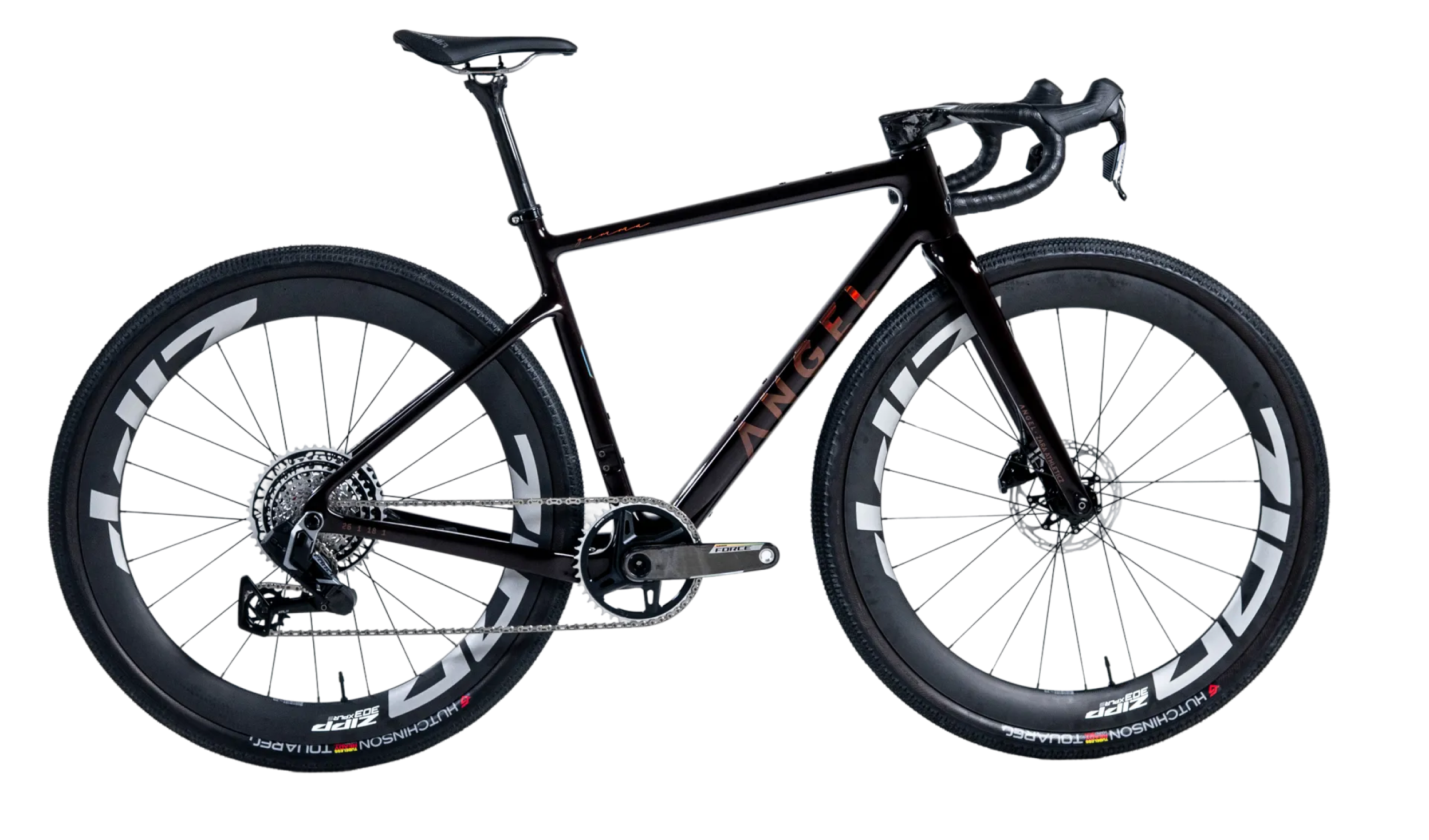

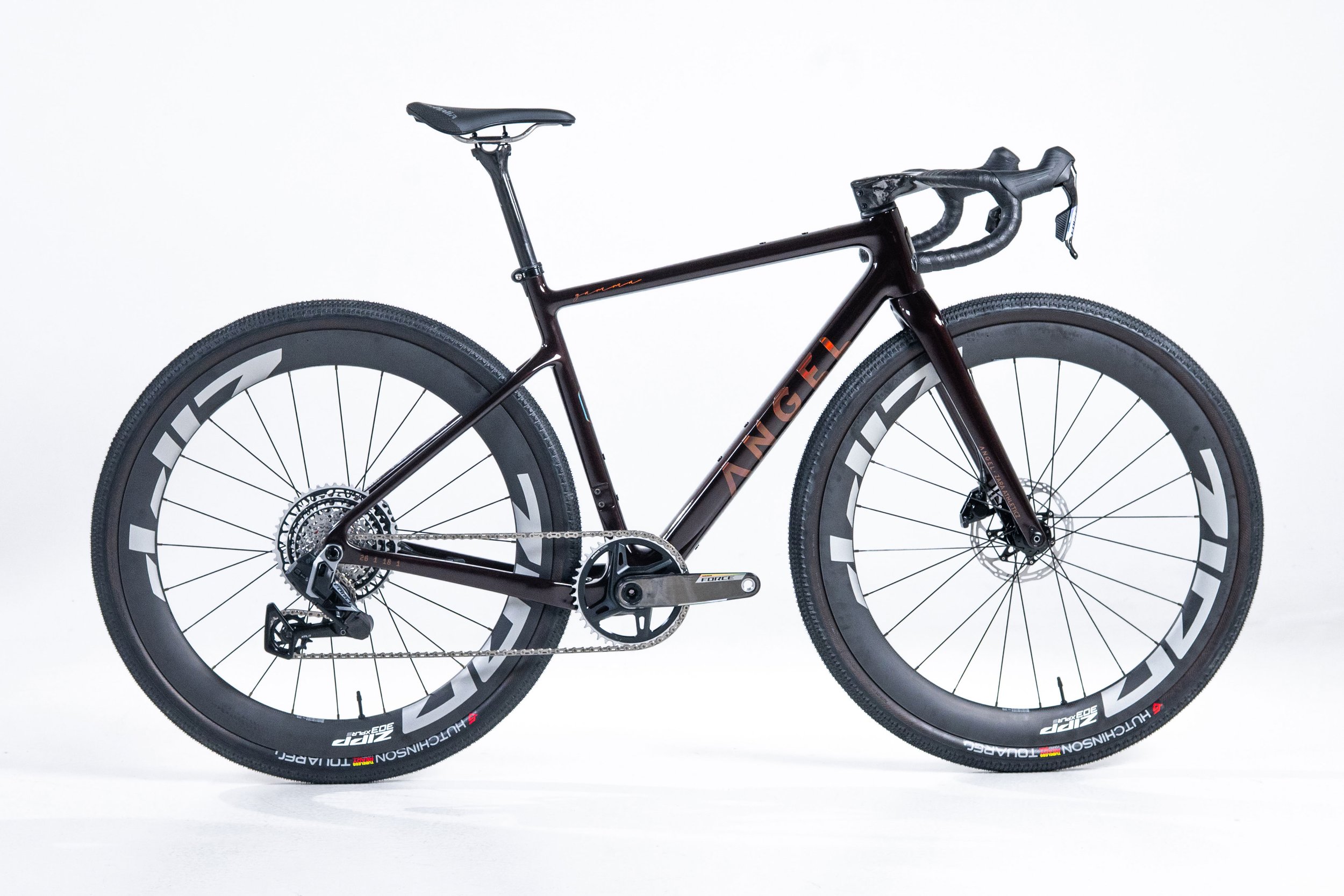

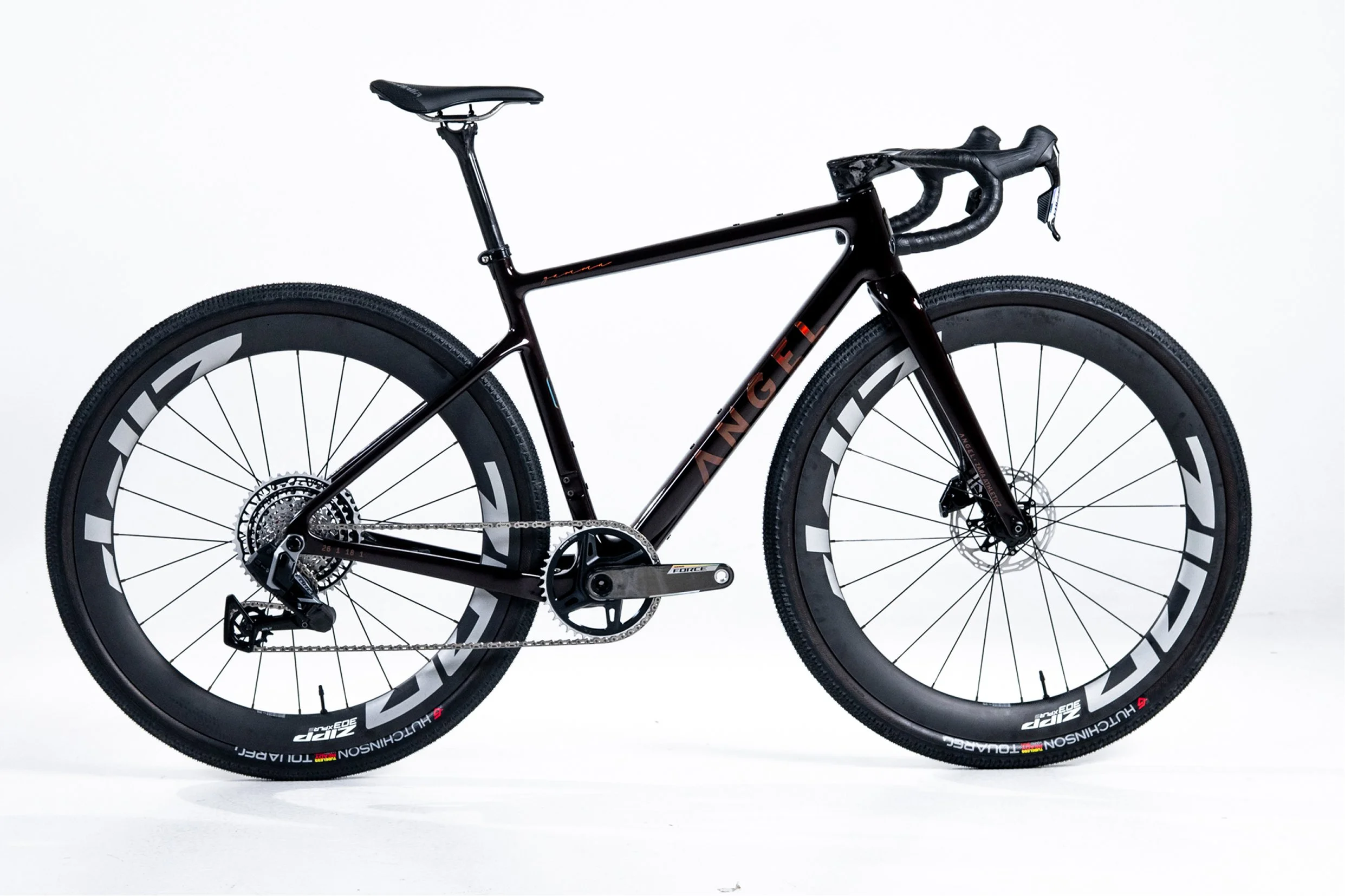

THE BIKE

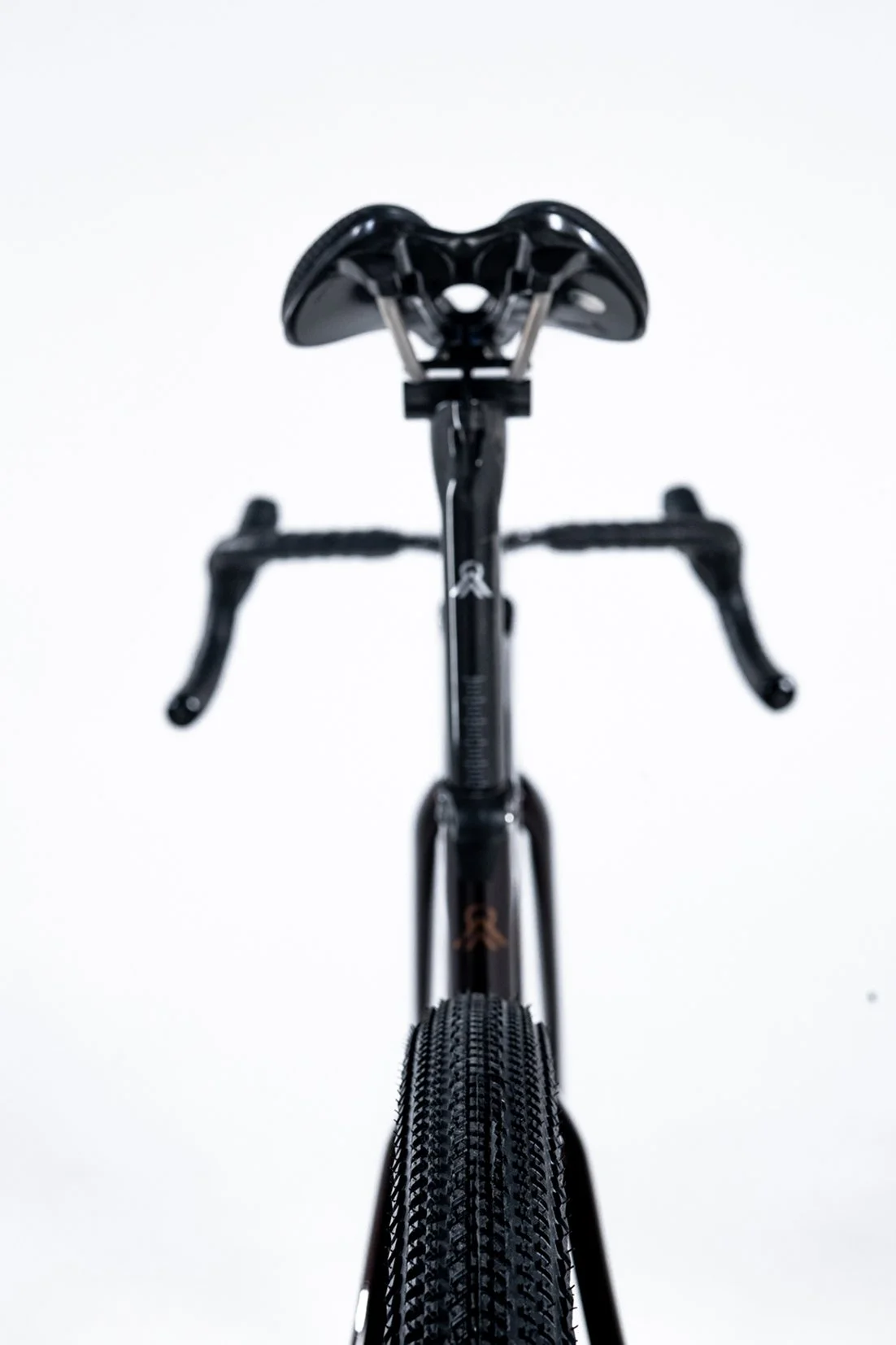

Selle Italia Saddle

Novus Evo Boost. A gravel-specific design with an anatomic cutout for comfort and support on long rides.

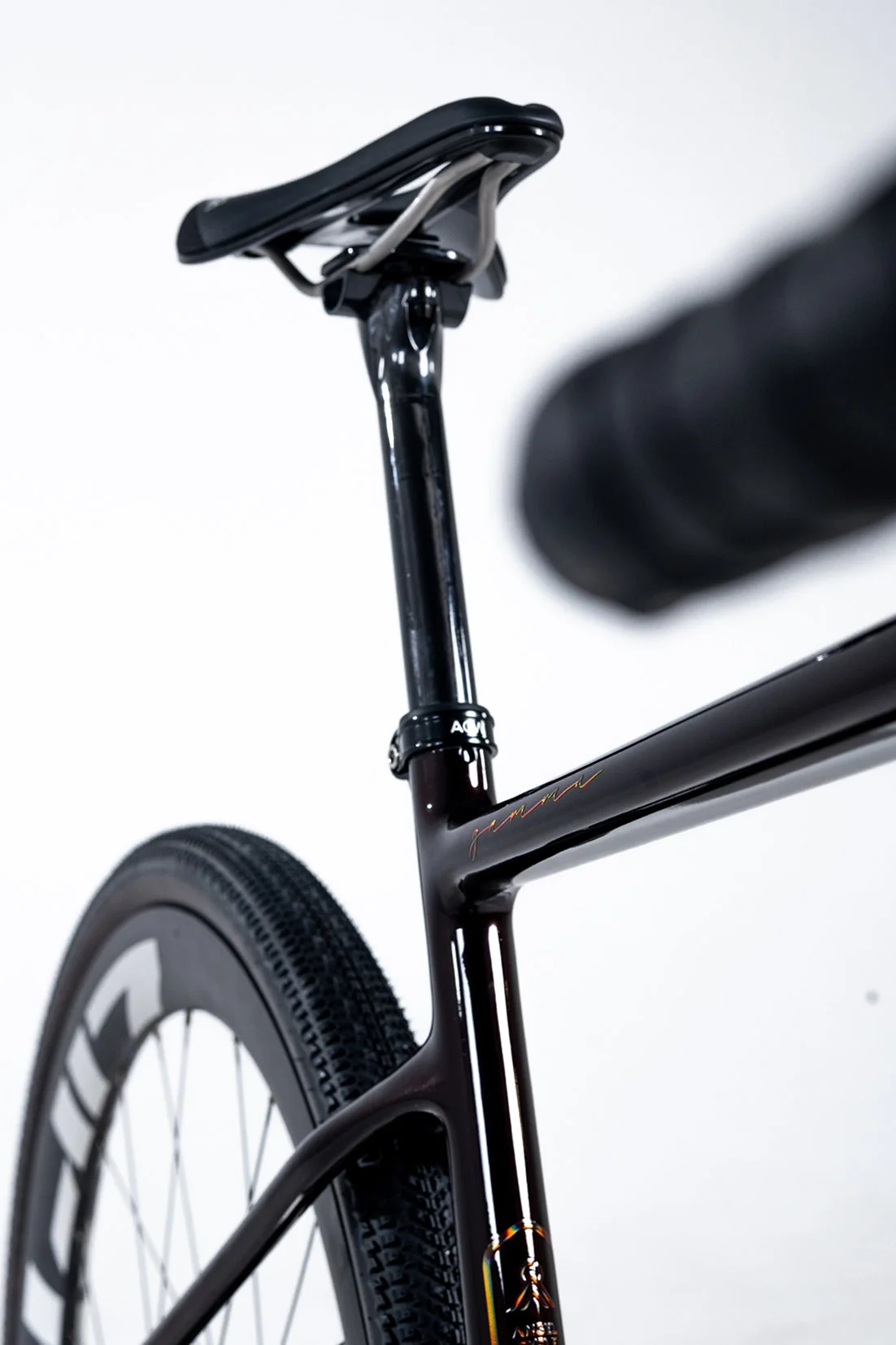

ACW Carbon Seatpost

Full carbon construction with titanium hardware. Lightweight and highly comfortable.

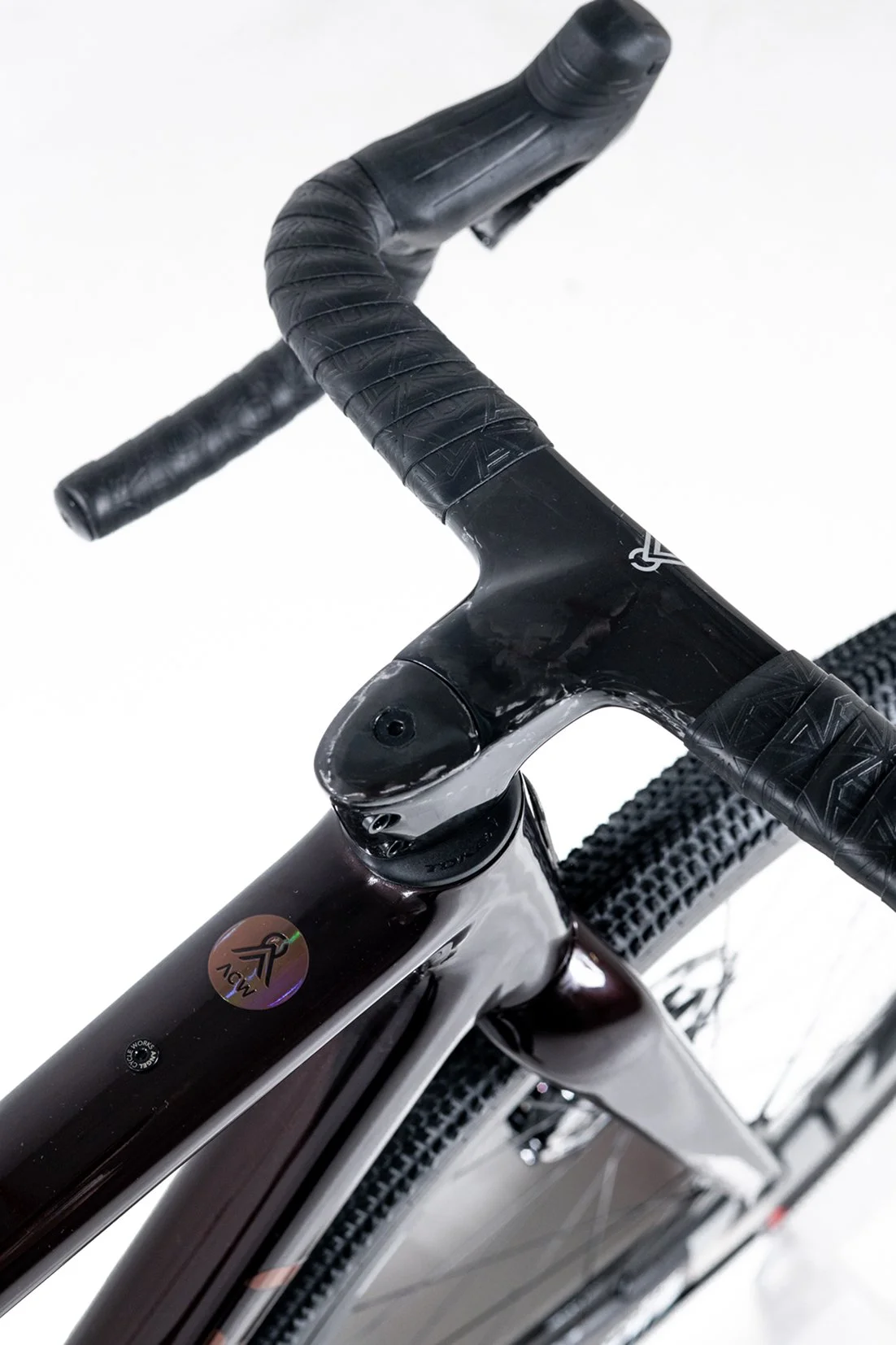

Handlebar

Compact shape with flared drops for improved ergonomics and control on rough terrain.

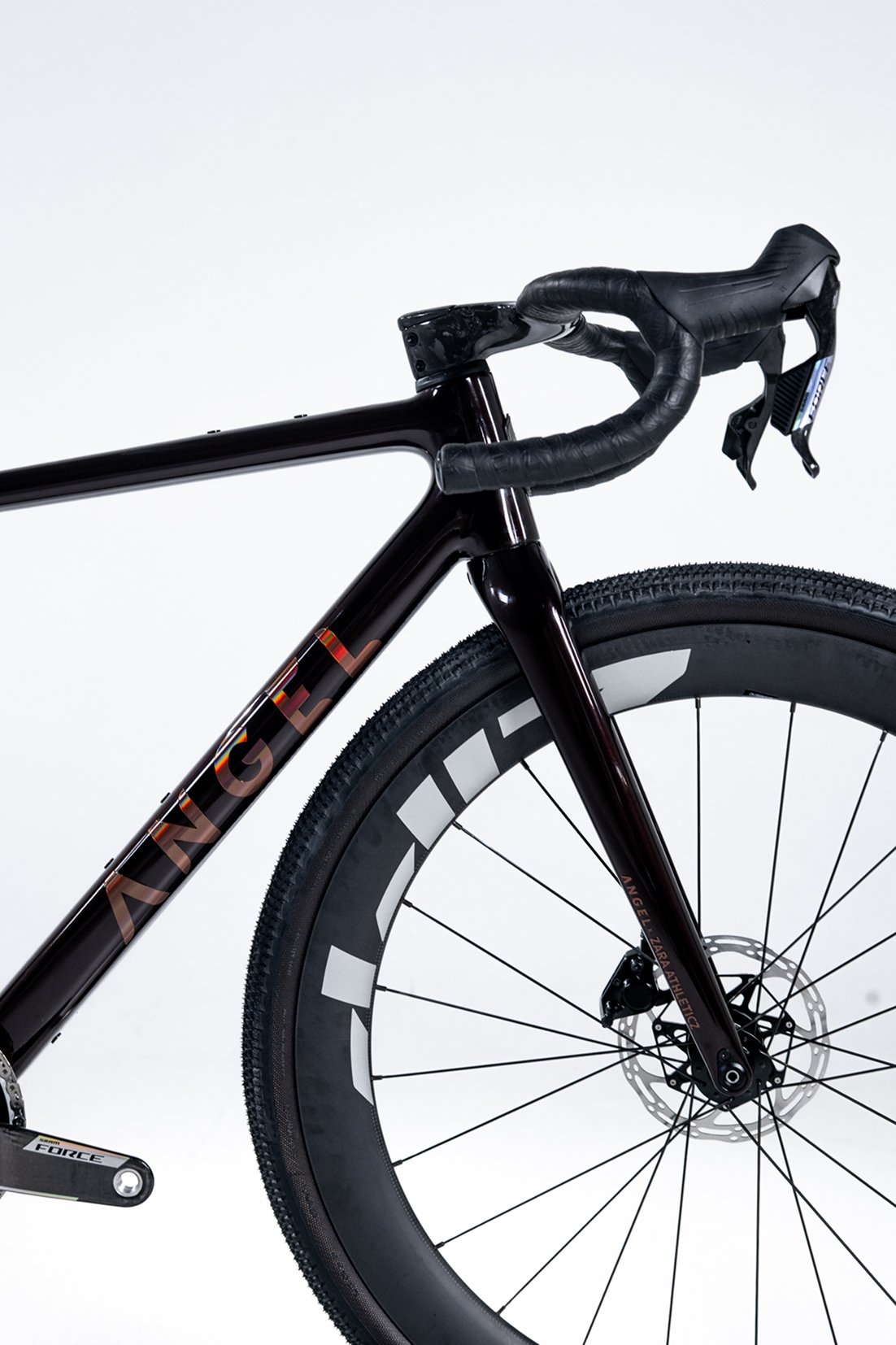

ACW Gamma Frame & Fork

Toray T800 carbon frame built to the highest quality standards.

SRAM Force XPLR AXS Drivetrain

Electronic 1×13 shifting with next-generation performance and precision.

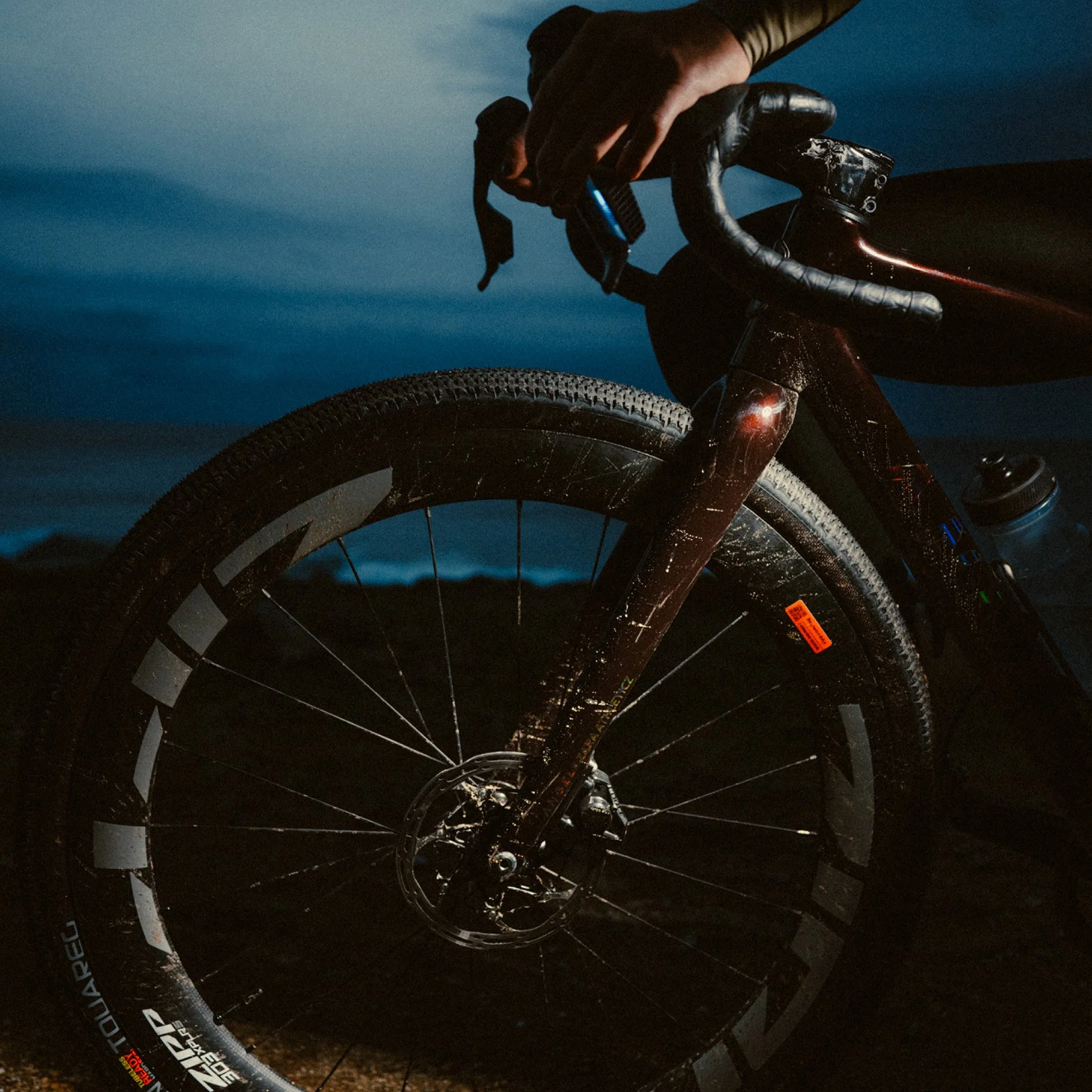

ZIPP 303 S XPLR Wheels

Gravel-optimized wheels with 54mm depth and 32mm internal width.

+

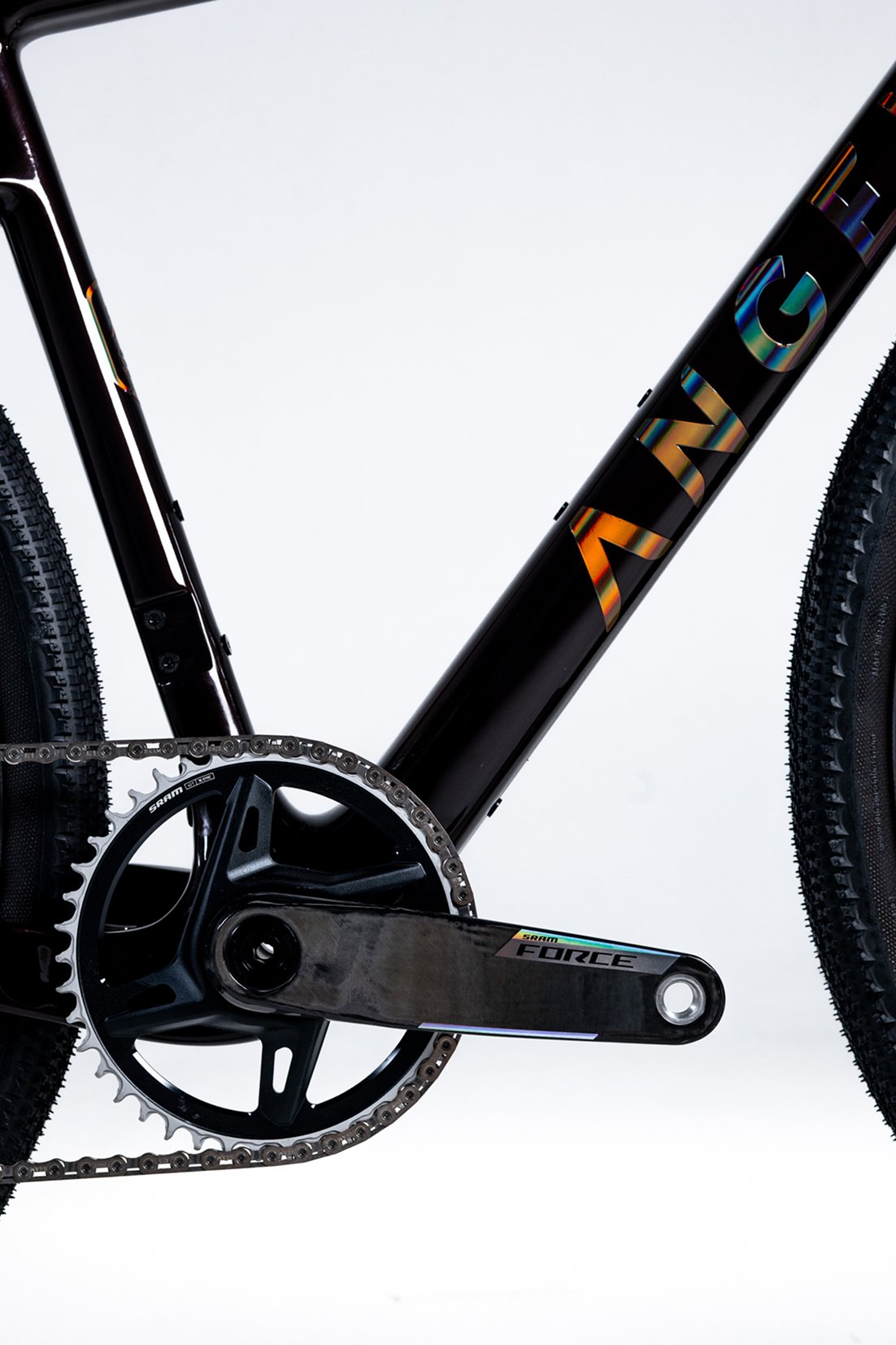

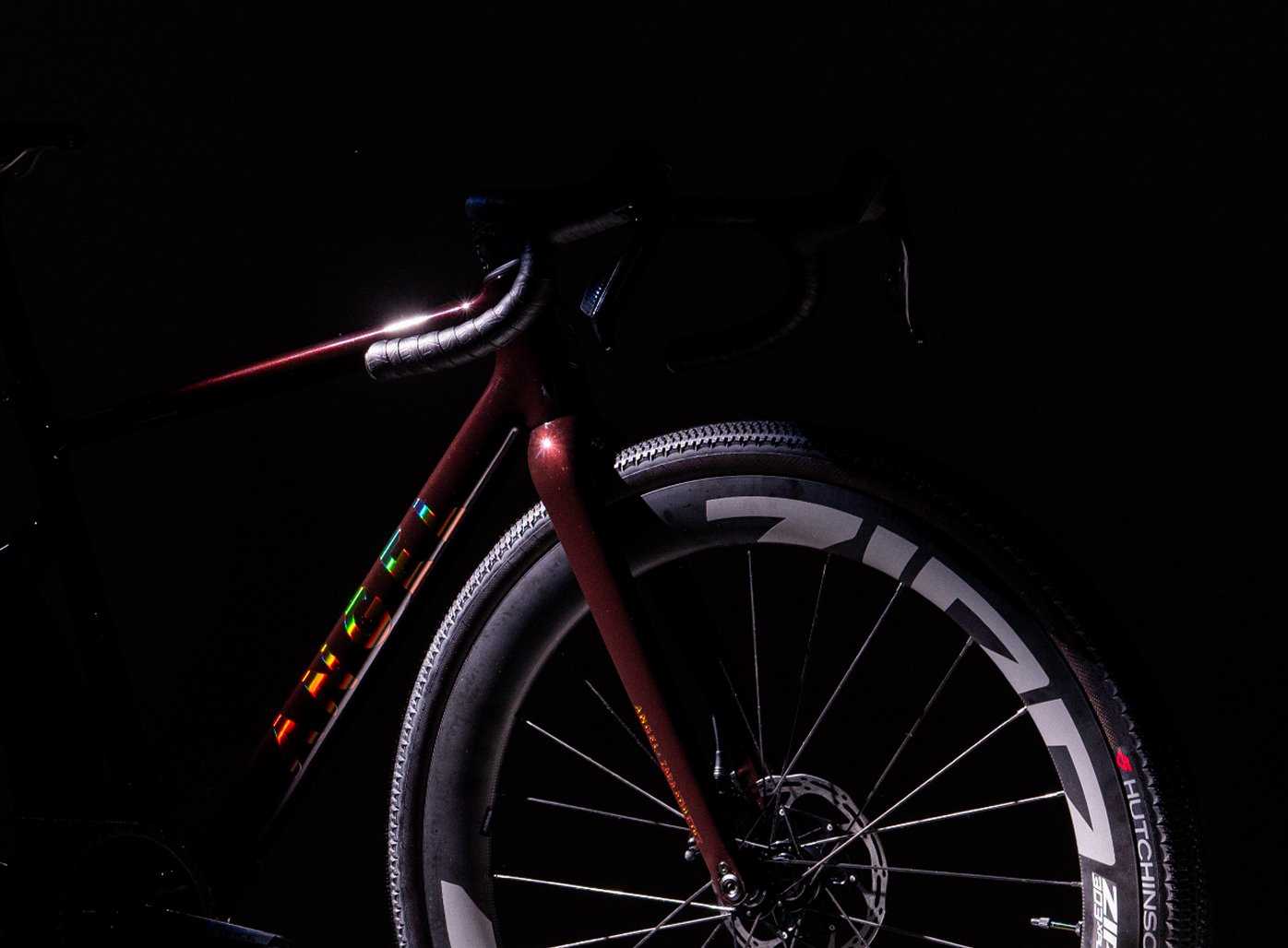

DRIVETRAIN & GEARING

We’ve chosen the new SRAM Force XPLR 1×13 groupset, combining versatility with a wide gearing range specifically designed for gravel riding. It brings the latest electronic shifting technology, offering simplicity by eliminating the front derailleur, efficiency with 13 finely spaced gears, and exceptional shifting speed and synchronization.

PERFECT BALANCE

We aimed for the perfect balance that a true gravel bike demands: reliability, low weight, comfort, and versatility. Reliability through a premium drivetrain and top-tier components from trusted brands; low weight thanks to a high-performance full-carbon framekit; comfort provided by a well-balanced geometry suitable for every type of ride; and versatility, because it’s ready for fast gravel, bikepacking, long routes, road sections — whatever the moment or terrain calls for.

SPECS & GEOMETRY

SPECIFICATIONS

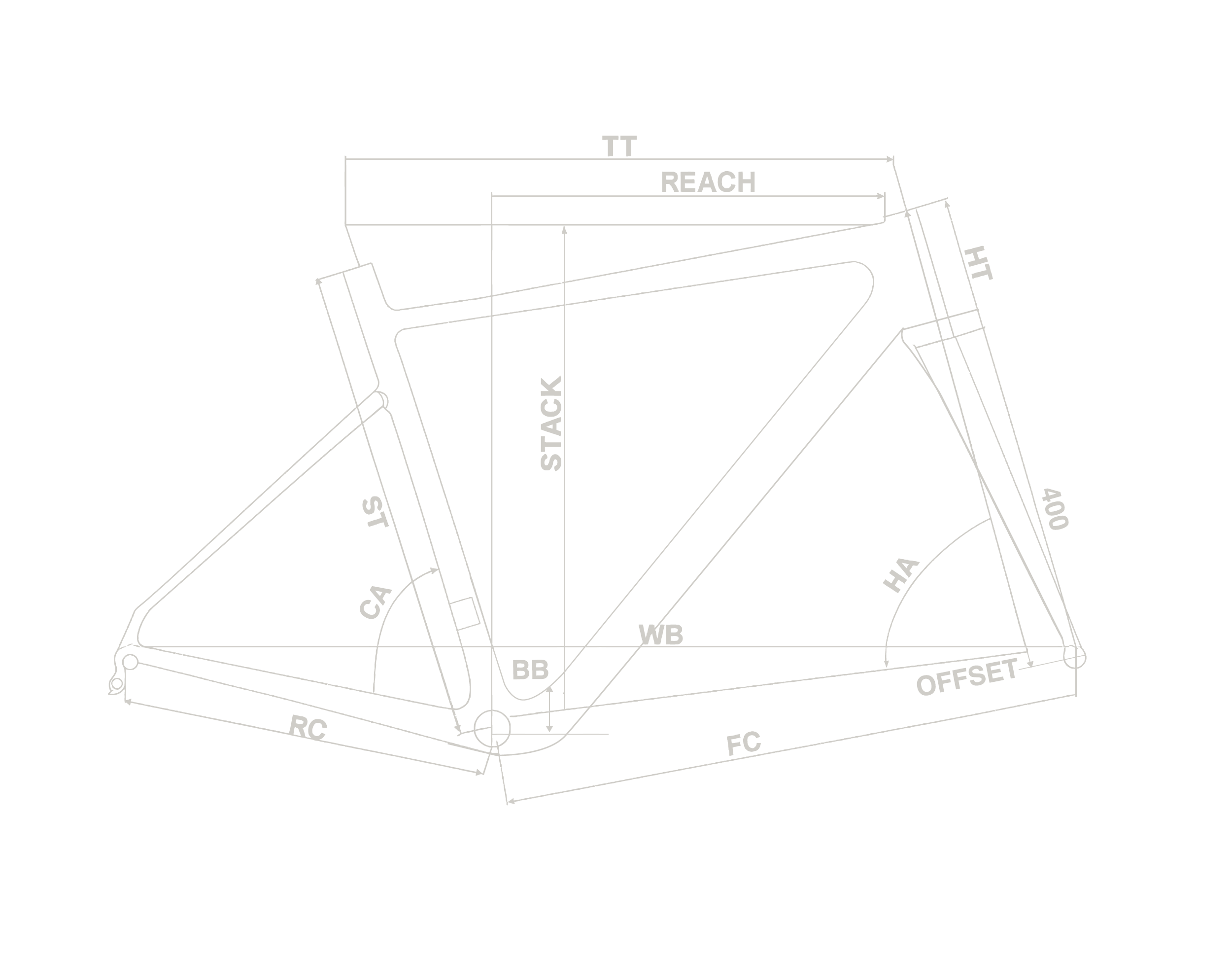

GEOMETRY & SIZING

FRAME

ANGEL Cycle Works Gamma Torayca Carbon, 12x142 Thru Axle, Flat Mount Disc, T47 BB, Internal Cable Routing

FORK

ANGEL Cycle Works GR Carbon, 12x100 Thru Axle, Flat Mount Disc, Internal Cable Routing

INTENDED USE

Gravel Race / Riding / Exploration / Adventure

SIZES

49 / 52 / 54 / 56

FRAME WEIGHT

1120g (size 54 including fittings, without paint)

HEADSET

TOKEN Black-box Integrated IS52/IS52, 1.5" upper and lower bearings

SEATPOST

ACW Carbon 27.2 × 350mm

BOTTOM BRACKET

TOKEN Ninja T47 Outboard (M47x68/73) for SRAM DUB

HANDLEBAR

ACW GR Carbon with fully integrated cable routing

Bar / Stem Options

Bar: 380/400/420 — Stem: 80/90/100/110

TAPE

ACW Black Tape

SADDLE

Selle Italia Novus Evo Boost

SEAT CLAMP

ACW Alloy 31.8mm with mud protector

GROUPSET

SRAM Force XPLR E1

BRAKE TYPE

Flat Mount (F:150/180 — R:140/160)

WHEELS

ZIPP 303 S XPLR — 700c

TYRES

HUTCHINSON Tuareg TBS 700×45c — Max clearance 50c

CRANKSET

SRAM Force XPLR E1 1× — 165/170/172.5mm

CHAINRING

42T — Max: 1×46T / 2×50-34T

FRONT AXLE

ACW Alloy 12×100 (L118 M12×1.0 TL15)

REAR AXLE

ACW Alloy 12×142 (L168 M12×1.0 TL15)

BOTTLE MOUNTS

3

COMPATIBILITY

1× and 2× — Electronic & Mechanical

WARRANTY

2 years (EU Regulations)

Size

Rider Height

+

	ST	TT	HT	HA	SA	BB	RC	FC	Offset	WB	Stack	Reach
49	490	538	125	71°	73°	69	435	597	55	1023	548	370
52	520	551	140	71°	73°	69	435	611	55	1036	562	379
54	540	571	160	71°	72.5°	69	435	626	55	1052	581	388
56	560	588	185	71°	72.5°	69	435	643	55	1069	604	397


49	160–169 cm
52	169–177 cm
54	177–185 cm
56	185–193 cm

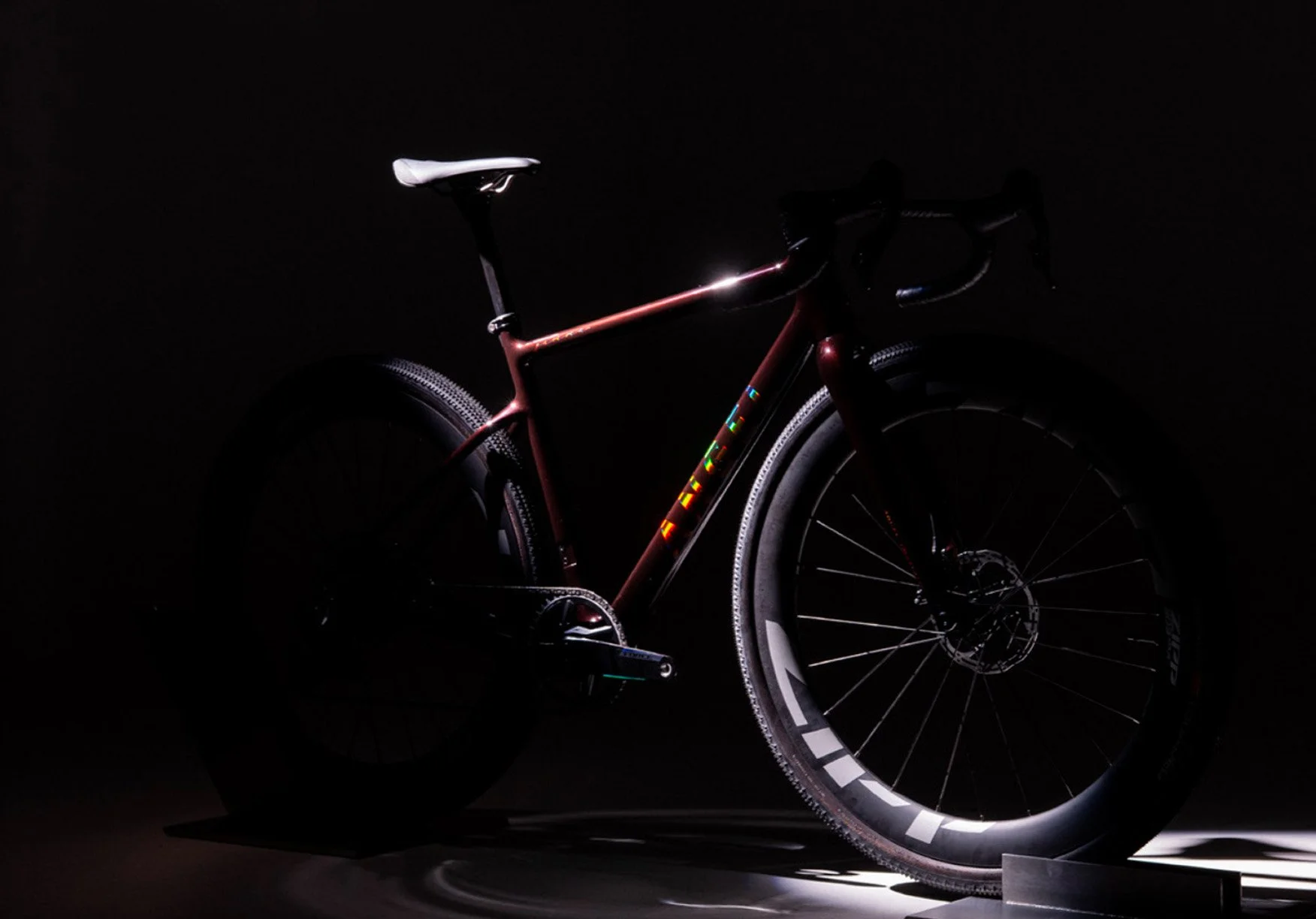

PVP 5,000€

Limited units: 50 bicycles

Made to order
